Advanced Usage

Event type​

Use the Dynamic Event type to load the event action with this.data.

This option can be used as a hook for different tools such as APEX Office Print.

Example Usage for APEX Office Print DA:​

Steps:

  1. Create Dynamic Action for APEX Office Print (Event trigger)

  2. Add Action UC-Progress Bar Pro [Plug-In]

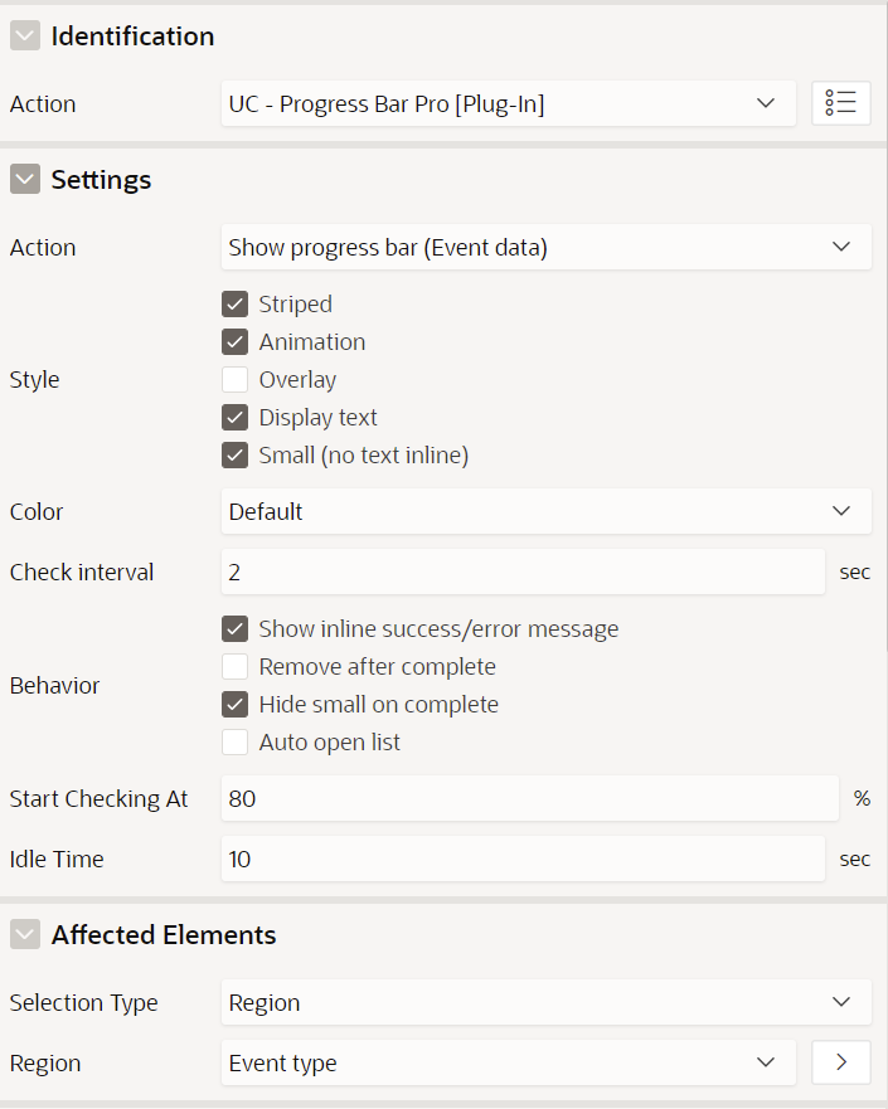

  3. In UC-Progress Bar Pro [Plug-In] Action set Attributes:

    1. Settings

      1. Action: Show progress bar (Event data)
      2. Behavior: uncheck Remove after complete and Auto open list
      3. Start Checking At: 80
      4. Idle Time: 10

Two parameters time (Idle Time) and percentage (Start Checking At) are needed to decide idle job 10 seconds in meantime fill up the progress bar to "80% and then start check-in into the database if the job has finished.

History (DBA Friendly)​

The plug-in works on the UC_PROGRESSBAR table (collection) this way we can also hold history if needed. Setting how long the history will be saved can be set inside the "OC_PROGRESSBAR_PKG" package with parameter:

g_history_days constant number := 30;

In case we are using "Job" type processes as a long-running job, here is also an option to use "dbms_application_info". Option is enabled by default with following line:

g_use_dbms_application_info constant boolean := true;

You can check execution as a DBA with :

select sid, sql_id, opname, target_desc, sofar, totalwork, start_time, elapsed_seconds, time_remaining, message
  from v$session_longops
 where where time_remaining > 0

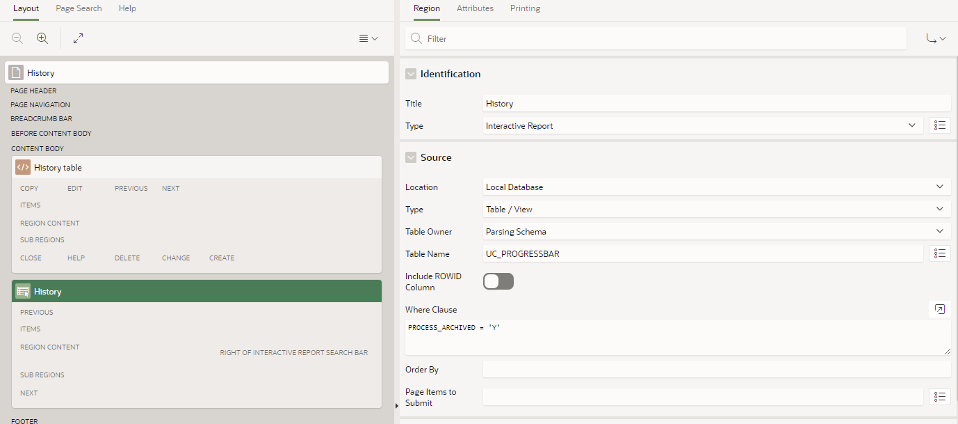

In case you want to display all jobs in APEX. You can use an Interactive Report.

Steps:

  1. Add Region Interactive Report

  2. Set Source Type to Table / View

  3. Set Table Name Attribute: UC_PROGRESSBAR

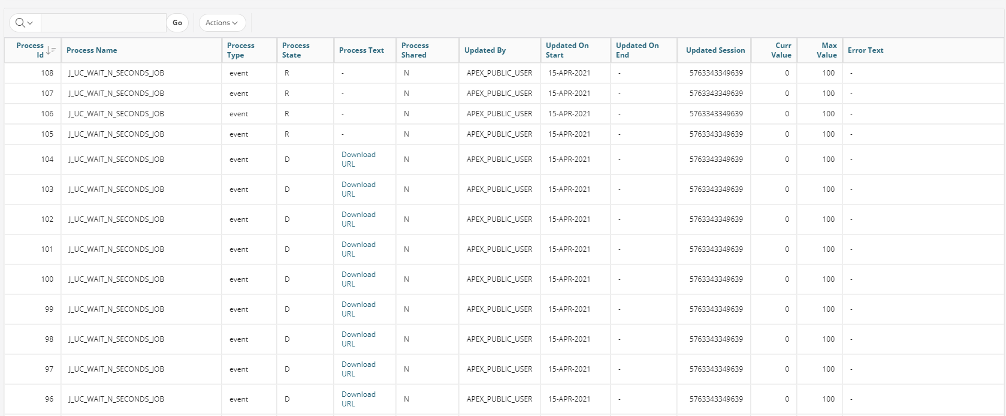

    Below is an example of the page.

CSS Settings​

CSS allows you to customize coloring and display options.

Here are few basic CSS settings for the Progress Bar.

Add these to the Inline CSS of the page:

/* Set height/border radius of progress bar */
.apex-uc-progress .progress {
    height:30px;
    border-radius: 10px;
    background-color:darkred;
}
/* Set color of foreground progress status */
.apex-uc-progress .progress-bar {
    background-color:skyblue!important;
}
/* Set text color / weight on progress bar */
.apex-uc-progress .progress-bar-text {
    color:red!important;
    font-size:16px;
    font-weight:120;
}
/* Separate settings for job list */
.ucp-list .progress {
    height:20px;
    font-size: 1.35rem;
    border-radius: 8px;
}
/* To set up link color if HTML used inside text */
.apex-uc-progress a {
    color:inherit;
    font-weight:700;
    /*color: darkblue !important;*/
}

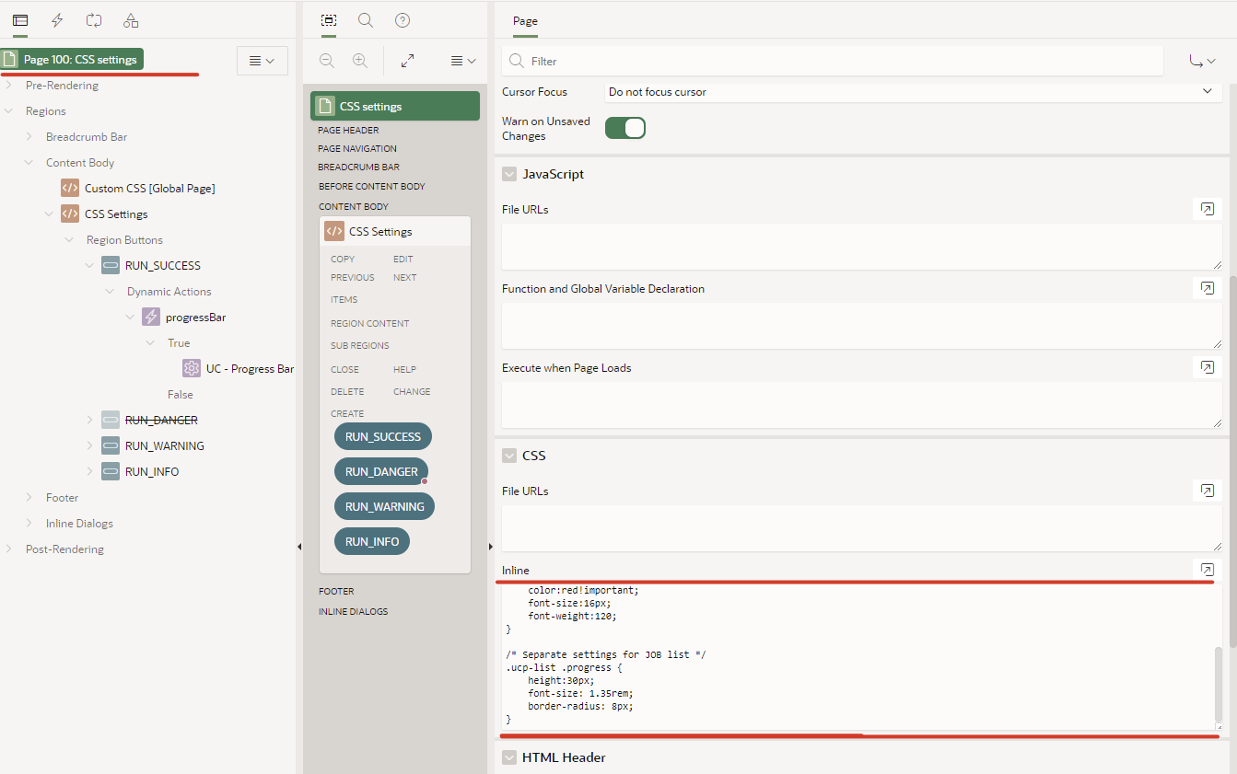

Inline CSS settings:
