Sample RESTful service

By the default, the plug-in uses sample ORDS RESTful service to upload, display, browse and delete uploaded images in the database. The RESTful service can be used to save uplaoded images in the database, filesystem or external file services.

:::tip A custom RESTful service

Any modifications to the sample RESTful service might be overridden in the future when updating plug-in to the most recent version. Because of that, we strongly recommend implementing your own RESTful service, for example as a copy of sample service. In guidelines section, you will find specification for a custom RESTful service compatible with Rich Text Editor Pro page item.

:::

The plug-in sample RESTful service is created when the plug-in sample application supporting objects are installed or when installing the plug-in using DDL script. The sample RESTful services is used by the plug-in default configuration and the plug-in sample application. Uploaded images are stored in the plug-in sample table UC_FROALA_SAMPLE_CLOB_BLOBS.

The sample RESTful service implements templates described in the table below.

Template	Method	Description
browse	GET	Template is used to browse previously uploaded images stored in the database.
delete	POST	Template is used to delete images displayed in the Froala image browser.
get/:fileid	GET	Template displays uploaded images embedded in CLOB content.
upload	POST	Template handles image upload using.
browseFolder	GET	An example implementation showing image filtering using custom parameter folder.
uploadFolder	POST	An example implementation of uploading images with a custom parameter folder.

Access token

The plug-in secures RESTful service request using the plug-in access token encoded using plug-in instance-specific salt string defined in the plug-in package UC_FROALA_SETTINGS. The encoded access token is available to all RESTful handlers through default query parameters. The access token is computed and encoded when Oracle APEX engine renders page item implementing the Rich Text Editor Pro.

When processing RESTful image request, a developer can decode the access token and get secured information about application session ID, given URL displaying uploaded images.

Note

Using access token to secure RESTful service request is not mandatory but it’s stricly recommended.

Salt string

The salt string is string definable in the plug-in package UC_FROALA_SETTINGS. The salt string is used to encode the access token and it should be changed after installing the plug-in.

Default query parameters

The plug-in RESTful service template handlers are invoked with additional default data send using query parameters. These query parameters can be used to identify application meta-data (session, id, page id, user) and uploaded image using PL/SQL bind variables.

:::tip Custom query parameters

Custom query parameters require extending sample RESTful handlers (we do not recommend it), or creating a custom RESTful service. A custom query parameters can be defined using the plug-in page item attribute Initialization JavaScript Code and image query parameter options (computed once on a page load) or using the supporting dynamic actions Upload Parameters and Image Browser Parameters.

:::

By the default, the plug-in uses default query parameters described in the table below.

Parameter Name	Bind variable	Data type	Description	Upload	Browse	Delete
accessToken	:accessToken	VARCHAR2	A current encoded access token.	:heavy_check_mark:	:heavy_check_mark:	:heavy_check_mark:
sessionId	:sessionId	VARCHAR2	A current APEX session ID.	:heavy_check_mark:	:heavy_check_mark:	:heavy_check_mark:
applicationId	:applicationId	VARCHAR2	A current application ID.	:heavy_check_mark:	:heavy_check_mark:	:heavy_check_mark:
pageId	:pageId	VARCHAR2	A current application page ID	:heavy_check_mark:	:heavy_check_mark:	:heavy_check_mark:
appUser	:appUser	VARCHAR2	A current application username.	:heavy_check_mark:	:heavy_check_mark:	:heavy_check_mark:
filename	:filename	VARCHAR2	An image filename is available only when an image is dragged and dropped from the desktop.	:heavy_check_mark:	:x:	:x:
tempUniqueId	:tempUniqueId	VARCHAR2	An image temporary ID assigned by the plug-in.	:heavy_check_mark:	:x:	:x:
imageId	:imageId	VARCHAR2	An image ID in the database.	:x:	:x:	:heavy_check_mark:

Sample Templates

The plug-in sample RESTful service implements REST templates enabling the plug-in to work right after installation. These templates are also used by the plug-in sample application to showcase plug-in features. We do not recommend using the sample RESTful service in production enviroment wihout inspecting the code and changing the salt string.

upload

The sample upload template uses POST handler to accept uploaded file and save it in the sample application database table UC_FROALA_SAMPLE_CLOB_BLOBS.

Attribute
RESTful Service Module	Rich Text Editor Pro Sample REST
Module Base Path	/ucfroalasamplerest/
URI Template	upload
Full URL	https://example-domain.com/ords/RTE/ucfroalasamplerest/upload
Handler Method	POST
Source Type	PL/SQL
Mime Types Allowed	Not defined

The highlighted lines are the default query parameters referenced as PL/SQL code bind variables.

begin
  UC_FROALA_SAMPLE_REST.imageUpload(
    // highlight-next-line
    p_access_token   => :accessToken,
    // highlight-next-line
    // highlight-next-line
    p_session_id     => :sessionId,
    // highlight-next-line
    p_application_id => :applicationId,
    // highlight-next-line
    p_page_id        => :pageId,
    // highlight-next-line
    p_app_user       => :appUser,
    // highlight-next-line
    p_image_name     => :filename,
    p_image_content  => :body,
    p_image_mimetype => :content_type,
    // highlight-next-line
    p_image_temp_id  => :tempUniqueId,
    p_status         => :status
  );

end;

The handler uses registered handler parameters described in the table below.

Name	Bind Variable	Access Method	Source Type	Data Type	Description
X-APEX-STATUS-CODE	:status	OUT	HTTP HEADER	INTEGER	The HTTP status code returned by ORDS

It also uses ORDS specific parameter listed in the table below.

Parameter name	Bind variable	Data Type	Description
content_type	:content_type	VARCHAR2	Specifies the MIME type of the request body, as indicated by the Content-Type request header.
body	:body	BLOB	Specifies the request’s body as a temporary BLOB.

Learn more about APEX specific REST bind variable at oracle-base.com.

Successful image upload request must be finished with specific JSON printed to the browser buffer. The JSON data is interpreted by Rich Text Editor Pro page item to replace uploaded image in a document, and update the plug-in session state.

{
  "data-image-id": "1706",
  "link": "https://example-domain.com/ords/WS/ucfroalasamplerest/get/1706"
}

:::tip Secure display handler from leaking images

When upload handler computes an uploaded image URL, an image URL can include custom query parameters. These query parameters can be used in get:/fileid handler.

For example, the image database id can be encoded using salt string and access token encode function to create an image checksum. Learn more here in guidelines for custom RESTful service upload handler.

:::

get/:fileid

The plug-in sample template displaying uploaded images uses GET handler to fetch an image from the sample application table UC_FROALA_SAMPLE_CLOB_BLOBS and streams it’s content to a browser buffer.

Attribute
RESTful Service Module	Rich Text Editor Pro Sample REST
Module Base Path	/ucfroalasamplerest/
URI Template	get/:fileid
Full URL	https://example-domain.com/ords/RTE/ucfroalasamplerest/get/:fileid
Method	GET
Source Type	PL/SQL
Mime Types Allowed	Not defined

The template GET handler uses the plug-in sample implementation in the plug-in package UC_FROALA_SAMPLE_REST.

begin
  UC_FROALA_SAMPLE_REST.imageGet(
    p_file_id    => :fileid,
    p_status     => :status
  );
end;

The template is requested with the default one parameter fileid described in the table below.

Name	Bind Variable	Access Method	Source Type	Data Type	Description
X-APEX-STATUS-CODE	status	OUT	HTTP HEADER	INTEGER	The HTTP status code returned by ORDS.
fileid	fileid	IN	URI	VARCHAR2	An image ID to be fisplayed.

The handler output is the result of procedure WPG_DOCLOAD.download_file streaming uploaded image BLOB into a browser buffer.

sys.HTP.init;
sys.OWA_UTIL.mime_header(v_file_mime_type, FALSE);
sys.HTP.p('Content-Length: ' || DBMS_LOB.getlength(v_file_blob_content));
HTP.p('Content-Disposition: filename="' ||v_file_filename|| '"');
sys.HTP.p('Access-Control-Allow-Origin: *');
sys.OWA_UTIL.http_header_close;

sys.WPG_DOCLOAD.download_file(v_file_blob_content);

browse

The sample browse template uses GET handler to fetch uploaded images from the sample application table UC_FROALA_SAMPLE_CLOB_BLOBS and present them to the end-user using the rich text editor image browser.

Attribute
RESTful Service Module	Rich Text Editor Pro Sample REST
Module Base Path	/ucfroalasamplerest/
URI Template	browse
Full URL	https://example-domain.com/ords/RTE/ucfroalasamplerest/browse
Method	GET
Source Type	PL/SQL
Mime Types Allowed

The highlighted lines are the default query parameters referenced as PL/SQL code bind variables.

begin
  UC_FROALA_SAMPLE_REST.imageBrowse(
    // highlight-next-line
    p_session_id      => :sessionId,
    // highlight-next-line
    p_access_token    => :accessToken,
    // highlight-next-line
    p_app_user        => :appUser,
    // highlight-next-line
    p_application_id  => :applicationId,
    // highlight-next-line
    p_page_id         => :pageId,
    p_status          => :status
  );
end;

Name	Bind Variable	Access Method	Source Type	Data Type
X-APEX-STATUS-CODE	status	OUT	HTTP HEADER	INTEGER

The handler output is Array of JSON objects describing uploaded images and saved in the sample table UC_FROALA_SAMPLE_CLOB_BLOBS.

[
  {"url":"https://example-domain.com/ords/WS/ucfroalasamplerest/get/2039108"},
  {"url":"https://example-domain.com/ords/WS/ucfroalasamplerest/get/2039105"},
  {"url":"https://example-domain.com/ords/WS/ucfroalasamplerest/get/2039106"},
  {"url":"https://example-domain.com/ords/WS/ucfroalasamplerest/get/2039107"}
]

delete

The sample delete template uses POST handler deleting an image in the database sample table UC_FROALA_SAMPLE_CLOB_BLOBS.

Attribute
RESTful Service Module	Rich Text Editor Pro Sample REST
Module Base Path	/ucfroalasamplerest/
URI Template	delete
Full URL	https://example-domain.com/ords/RTE/ucfroalasamplerest/delete
Method	POST
Source Type	PL/SQL
Mime Types Allowed

The highlighted lines are the default query parameters referenced as PL/SQL code bind variables.

begin
  UC_FROALA_SAMPLE_REST.imageDelete(
    // highlight-next-line
    p_access_token   => :accessToken,
    // highlight-next-line
    p_session_id     => :sessionId,
    // highlight-next-line
    p_application_id => :applicationId,
    // highlight-next-line
    p_page_id        => :pageId,
    // highlight-next-line
    p_app_user       => :appUser,
    p_image_id       => :imageId,
    p_status         => :status
  );
end;

Name	Bind Variable	Access Method	Source Type	Data Type
X-APEX-STATUS-CODE	status	OUT	HTTP HEADER	INTEGER

Sample application templates

The sample application templates uploadFolder and browseFolder are used exclusively by the plug-in sample application to showcase the plug-in dynamic actions Uplaod parameters and Image Browser Parameters.

:::tip live demo

Both dynamic action can be tested online in the sample application example page Image Upload Parameters.

:::

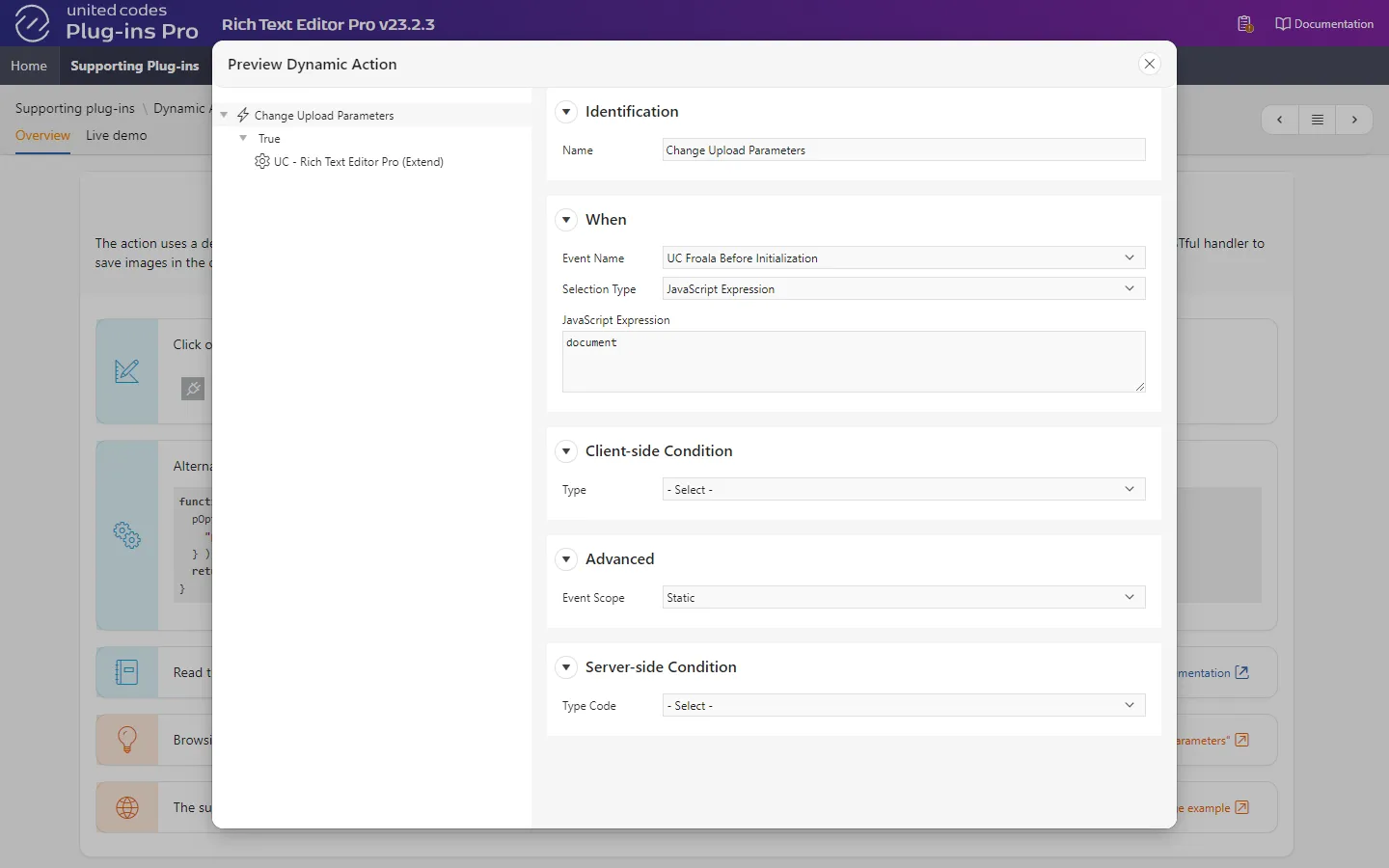

These handlers uses the custom query parameter named folder. The value is computed based on page item value (select list), and is used to save the value along with an image in the table UC_FROALA_SAMPLE_CLOB_BLOBS as value for column FOLDER. When the plug-in image browser is invoked, the folder query parameter (page item value) is used computed again, and it is used to filter only images with column FOLDER matching the page item value.

Note

These templates are copies of sample templates uplaod and browse, except they reference folder using :folder bind variable.

uploadFolder

The handler uses the custom query parameter folder to save the page item current value in the table UC_FROALA_SAMPLE_CLOB_BLOBS.FOLDER column.

Attribute
RESTful Service Module	Rich Text Editor Pro Sample REST
Module Base Path	/ucfroalasamplerest/
URI Template	uploadFolder
Full URL	https://example-domain.com/ords/RTE/ucfroalasamplerest/uploadFolder
Handler Method	POST
Source Type	PL/SQL
Mime Types Allowed	Not defined

begin
  UC_FROALA_SAMPLE_REST.imageUploadFolder(
    p_access_token   => :accessToken,
    p_session_id     => :sessionId,
    p_application_id => :applicationId,
    p_page_id        => :pageId,
    p_app_user       => :appUser,
    p_image_temp_id  => :tempUniqueId,
    p_image_name     => :filename,
    p_image_content  => :body,
    p_image_mimetype => :content_type,
    // highlight-next-line
    p_folder         => :folder,
    p_status         => :status
  );
end;

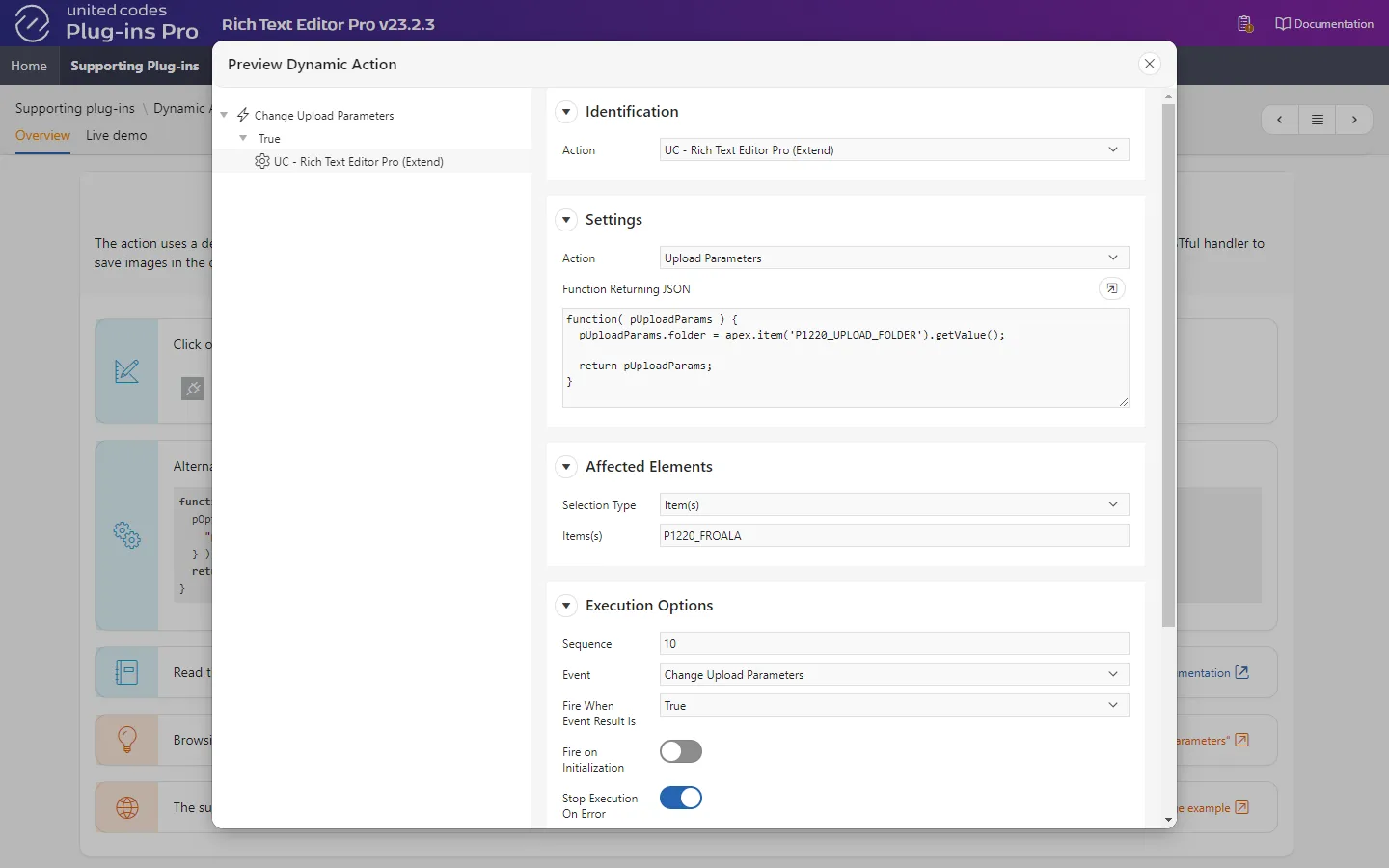

function( pUploadParams ) {
  pUploadParams.folder = apex.item('P1220_UPLOAD_FOLDER').getValue();
  return pUploadParams;
}

browseFolder

The handler uses the custom query parameter folder to list uploaded and saved images in the sample application table UC_FROALA_SAMPLE_CLOB_BLOBS using SQL condition WHERE folder = :folder when the plug-in image browser is invoked.

Attribute
RESTful Service Module	Rich Text Editor Pro Sample REST
Module Base Path	/ucfroalasamplerest/
URI Template	browseFolder
Full URL	https://example-domain.com/ords/RTE/ucfroalasamplerest/browseFolder
Method	GET
Source Type	PL/SQL
Mime Types Allowed

begin
  UC_FROALA_SAMPLE_REST.imageBrowseFolder(
    p_session_id      => :sessionId,
    p_access_token    => :accessToken,
    p_app_user        => :appUser,
    p_application_id  => :applicationId,
    p_page_id         => :pageId,
    // highlight-next-line
    p_folder          => :folder,
    p_status          => :status
  );
end;

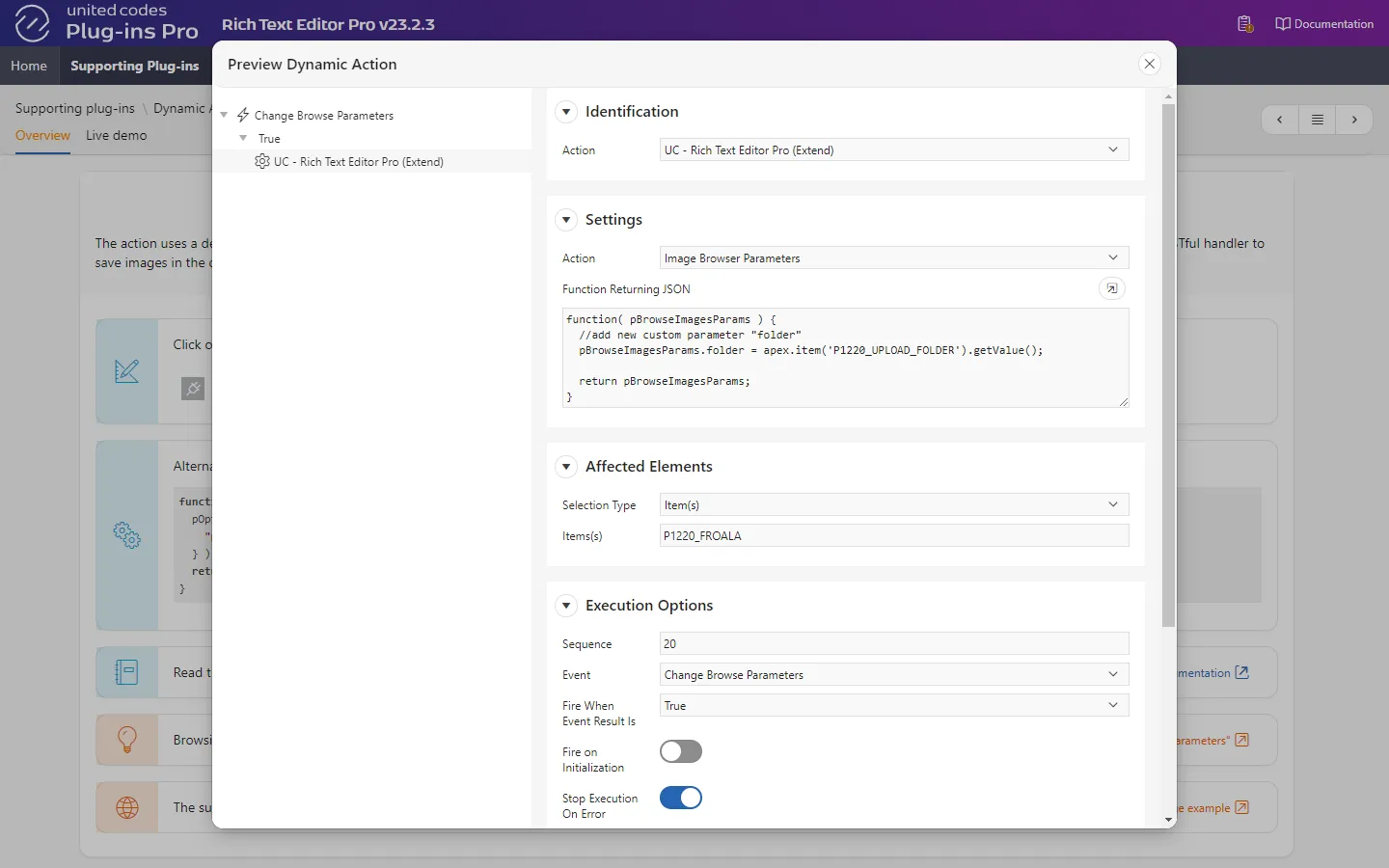

function( pBrowseImagesParams ) {
  pBrowseImagesParams.folder = apex.item('P1220_UPLOAD_FOLDER').getValue();
  return pBrowseImagesParams;
}
