AMS Process

Overview​

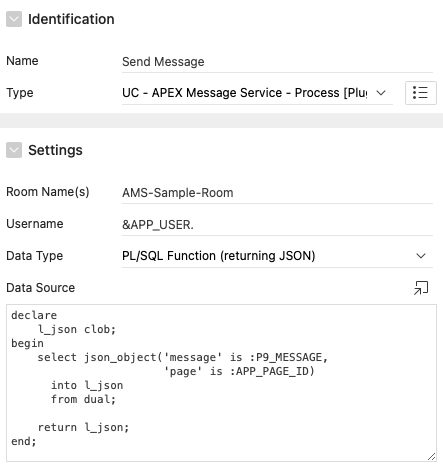

Settings​

Room Name(s)​

When sending a message, you can specify one or more room names to send messages to. Separate them by a comma. e.g. room1,room2,room3

Username​

You can optionally specify a username. This can be handy if you want to provide the end user with the username. (e.g., the username in a chat application)

Data Type​

Data Type is the type of data you want to send to the server; depending on what Data Type you choose, the JSON sent to the server will look different. The following data types are supported:

  • SQL Query
  • PL/SQL Function Body Returning JSON
  • JSON

Data Source: SQL Query​

When you choose SQL Query as Data Type, you can specify a SQL Query that will be executed, and the result will be sent to the server. The result will always be sent as a JSON Array, even when the query returns only one result.

Example:

[
  {
    "deptno": 10,
    "dname": "ACCOUNTING",
    "loc": "NEW YORK"
  }
]

Data Source: PL/SQL Function Body Returning JSON​

When you choose PL/SQL Function Body Returning JSON as Data Type, you can specify a PL/SQL Function Body that will be executed, and the result will be sent to the server. The result will be sent as a JSON Object/Array, depending on your query.

Example:

{
  "deptno": 10,
  "dname": "ACCOUNTING",
  "loc": "NEW YORK"
}

Example 2:

[
  {
    "deptno": 10,
    "dname": "ACCOUNTING",
    "loc": "NEW YORK"
  },
  {
    "deptno": 20,
    "dname": "RESEARCH",
    "loc": "DALLAS"
  }
]

Data Source: JSON​

When you choose JSON as Data Type, you can specify a JSON Object/Array that will be sent to the server.

Example:

{
  "deptno": 10,
  "dname": "ACCOUNTING",
  "loc": "NEW YORK"
}
