Events
The rich text editor pro exposes nice plug-in-specific JavaScript events bindable using Oracle APEX dynamic actions. The plug-in triggers also native APEX events described in documentation for APEX integration.
- Live demo

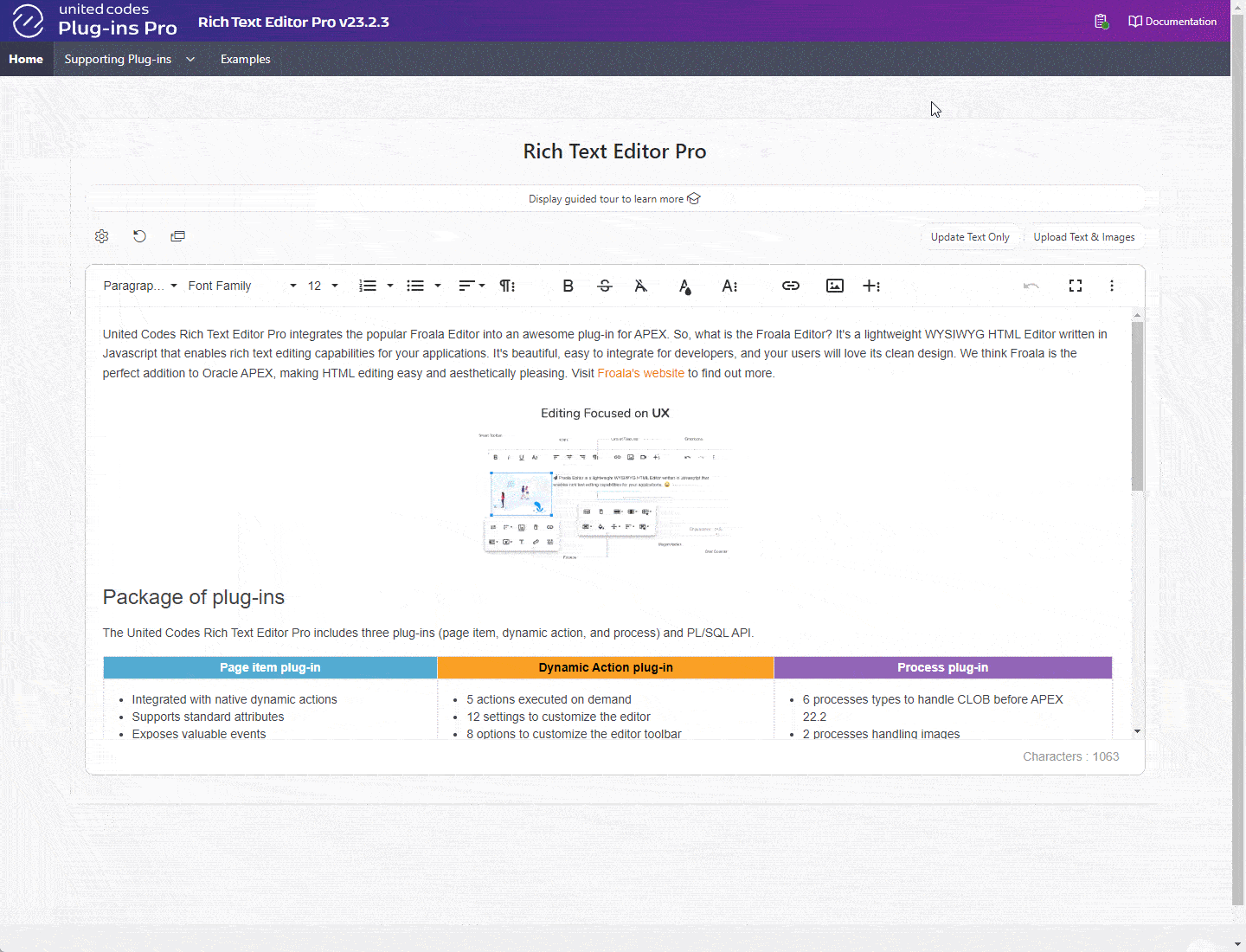

- Home page settings preview
All plug-in events can be tested and inspected in the plug-in online sample application home page.
UC Froala Before Initialization
The plug-in triggers event ucfroalabeforeinitialize before rich text editor is initialized allowing customizing the plug-in instance using supporting dynamic action plug-in.
Event data
The event exposes data described in the table below. All properties can be referenced using this.data.
| Property | Type | Description |
|---|---|---|
| options | JSON | The Froala option currently used by the plug-in |
UC Froala CLOB updated
The plug-in triggers event ucfroalaclobdraftupdated a current document HTML is updated in the plug-in session state when submitting a page, or on the end-user demand after executing the plug-in dynamic action Update CLOB.
Event data
The event exposes data described in the table below. All properties can be referenced using this.data.
| Property | Type | Description |
|---|---|---|
| checksum | Number | The checksum of a draft CLOB |
| length | Number | Length of the CLOB value. |
UC Froala CLOB reset
The plug-in triggers event ucfroalaclobonloadreset after a document contents is restored to on-load CLOB using the dynamic action Reset Value.
Event data
The event exposes data described in the table below. All properties can be referenced using this.data.
| Property | Type | Description |
|---|---|---|
| checksum | Number | The checksum of an onload CLOB |
| length | Number | Length of the CLOB value. |
UC Froala Content Changed
The plug-in triggers event ucfroalacontentchanged whenever editor's content has changed. The difference to the native change event is triggered when page item value changes, which happens after editor looses focus.
Event data
The event exposes data described in the table below. All properties can be referenced using this.data.
| Property | Type | Description |
|---|---|---|
| options | JSON | The Froala option currently used by the plug-in |
UC Froala Initialized
The plug-in triggers the event ucfroalacontentinitialized right after the rich text editor pro is created and ready to use.
Event data
The event exposes data described in the table below. All properties can be referenced using this.data.
| Property | Type | Description |
|---|---|---|
| options | JSON | The Froala option currently used by the plug-in |
UC Froala Image Browser Error
The plug-in triggers event ucfroalaimagemanagererror, when the image browser raises error.
Event data
The event exposes data described in the table below. All properties can be referenced using this.data.
| Property | Type | Description |
|---|---|---|
| options | JSON | The Froala option currently used by the plug-in |
| errorCode | Number | The Froala error code |
| errorMessage | String | The Froala error message |
| response | String | The RESTful delete service output |
UC Froala Image Upload Error
The plug-in triggers event ucfroalaimageuploaderror when uploading an image fails due REST handler error or image validation.
Event data
The event exposes data described in the table below. All properties can be referenced using this.data.
| Property | Type | Description |
|---|---|---|
| code | number | 0 - an error raised when initializing an image upload, for example validation failed1 - an error raised by jQuery.ajax function, for example, the response can't be parsed as valid JSON2 - an error raised due to HTTP status code other than 200 |
| guiId | String | An image temporary id assignes as image attribute data-image-temp-id |
| status | number | HTTP status code |
| response | JSON | request response set by RESTful upload handler |
| errorMessage | String | An error message raised by validation, JavaScript error or jQuery.ajax function |
UC Froala Images In Collection
The plug-in triggers event ucfroalacollectionimageschanged when an image within a document is added or removed. The event is also triggered after plug-in initialization.
Event data
The event exposes data described in the table below. All properties can be referenced using this.data.
| Property | Type | Description |
|---|---|---|
| images | Array | An array of JSON objects describing an image. |
The table below describes an image JSON in this.data.images array.
| Property | Type | Description |
|---|---|---|
| seqId | Number | A sequence ID identifying an image in the plug-in collection. |
| guiId | String | A temporary ID identifying an image in document DOM. |
| dbId | Number | An ID identifying an image in database table. |
| rest | Boolean | When true, an image was uploaded using the plug-in RESTful service. |
| base64 | Boolean | When true, an image is added to rich HTML text as inline base64 image. |
| onload | Boolean | When true, an image was present in a rich HTML text when plug-in was initialized. |
| added | Boolean | When true an image was added to a rich HTML text. |
| removed | Boolean | When true an image was removed from a rich HTML text. |
| url | String | A current image URL. |
| node | DOM node | A DOM node referencing an image. |
UC Froala Option Changed
The plug-in triggers event ucfroalaoptionchanged after changing the plug-in configuration using supporting dynamic actions Image Browser Parameters and Upload Parameters.
Event data
The event exposes data described in the table below. All properties can be referenced using this.data.
| Property | Type | Description |
|---|---|---|
| option | String | The Froala editor or the plug-in option name that has been changed. Possible values are: base64images, imageUploadParams, and imageManagerLoadParams |
| before | String | JSON | Boolean | The option value before a change |
| after | String| JSON | Boolean | The option value after a change |
| triggeringElement | DOM node | The event triggering element, |
