Using process plug-in

In Oracle APEX 19.2, the Rich Text Editor Pro offers seamless integration with the supporting process plug-in, enabling developers to efficiently manage CLOB values in the database. This feature empowers developers to store, retrieve, and update rich text documents exceeding the VARCHAR2 limitation (32,767 characters), providing enhanced flexibility and scalability in document management.

In this guidelines, developers are guided through the process of implementing plug-in processes loading, inserting and updating documents in the database.

Prerequisites

Before implementing the plug-in please read the implementation prerequisites described in parent document.

Create report page linked with modal page

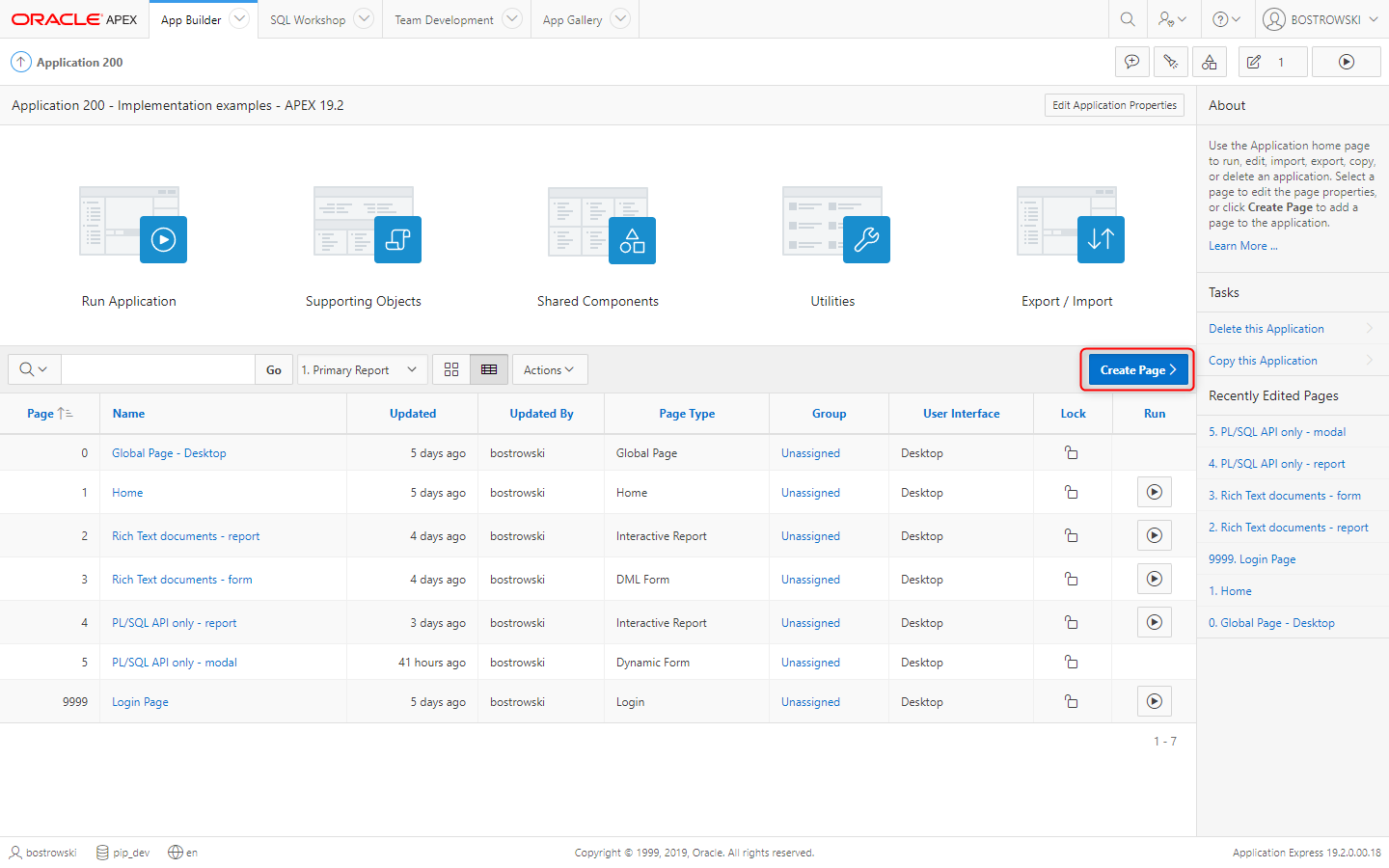

Click Create Page button.

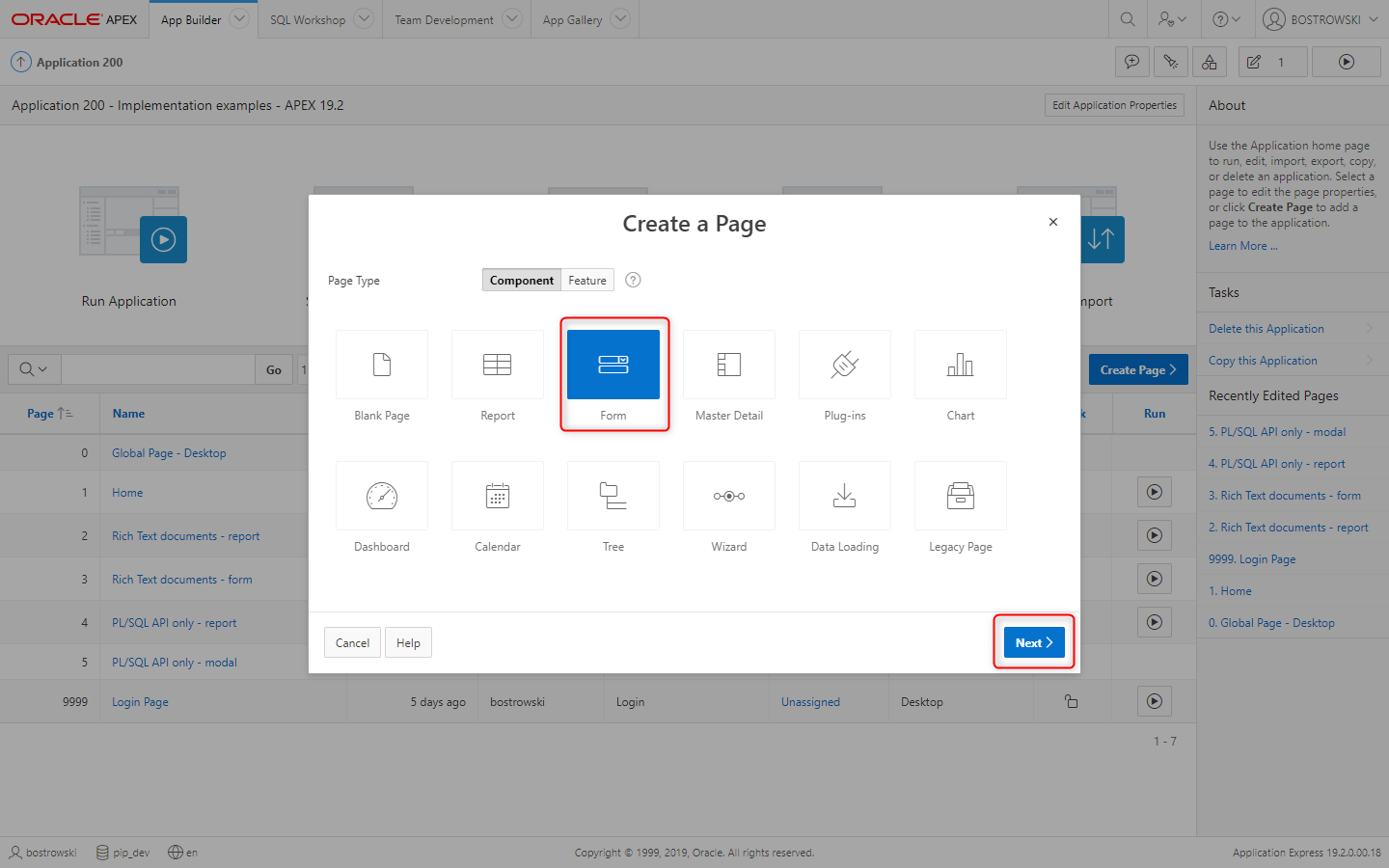

In modal Create a Page select Form and click Next button.

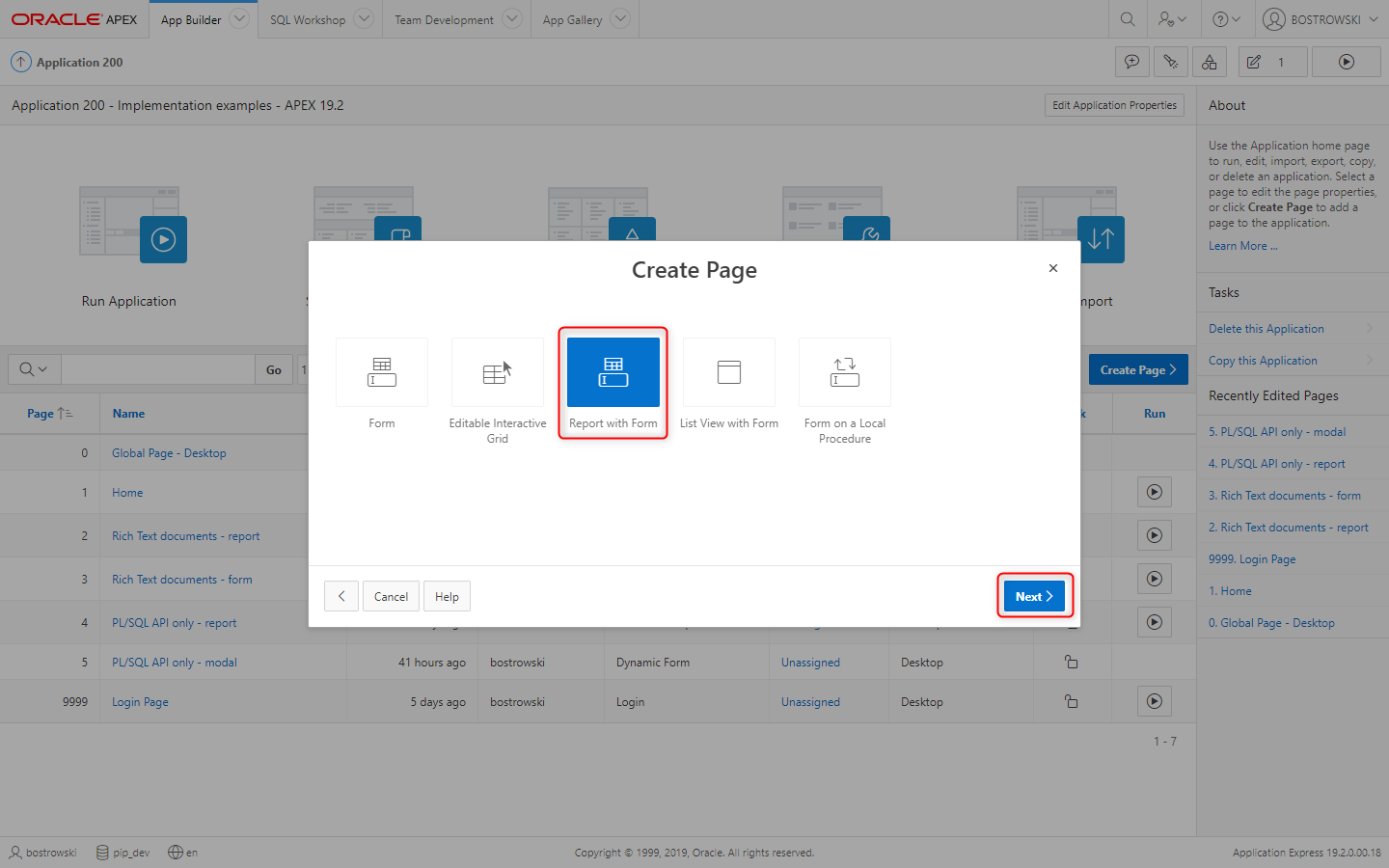

In modal Create Page select Report with Form and click Next button.

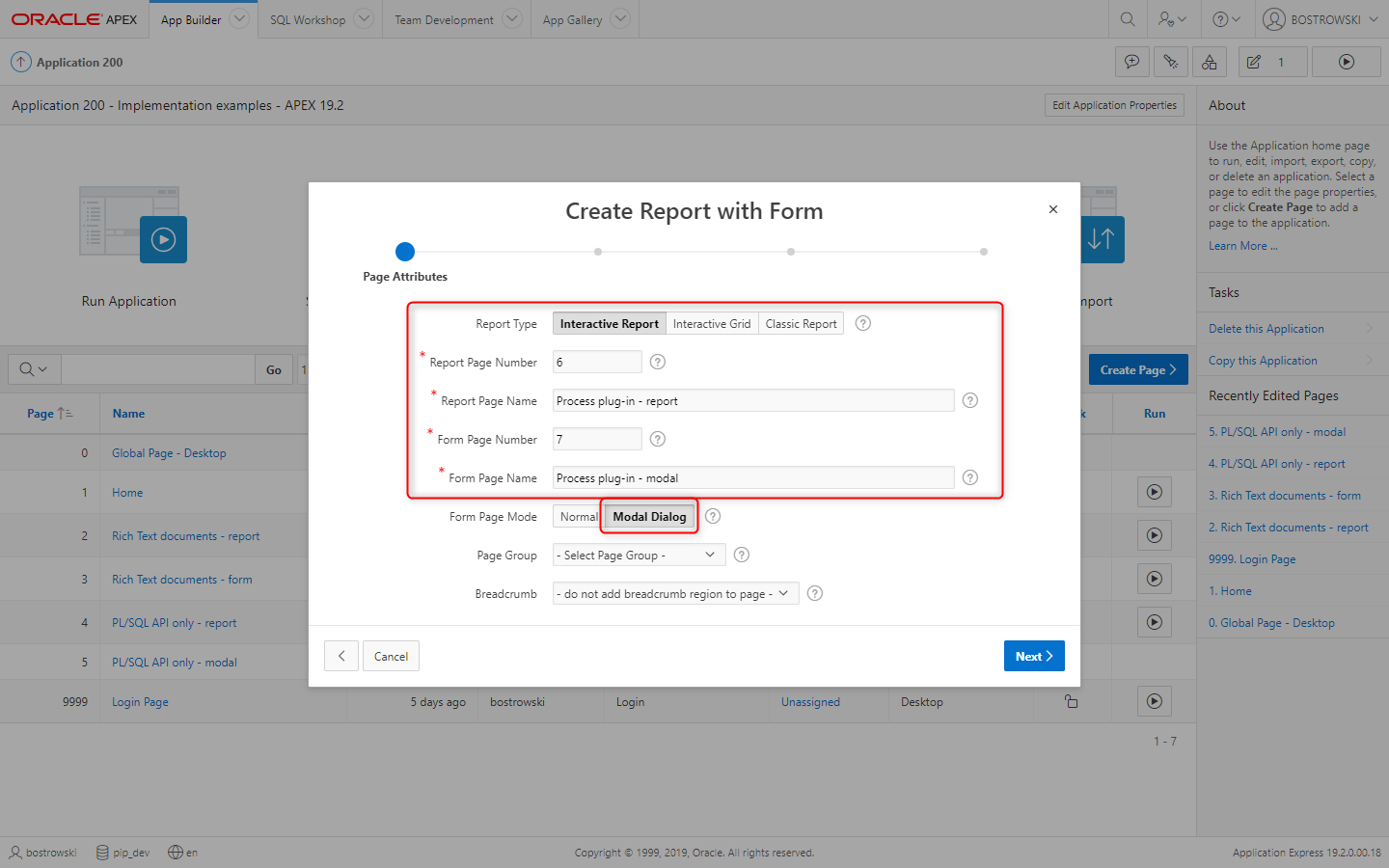

In APEX wizard Create Report with Form (Page attributes):

1. Set Report Type to Interactive Report
2. Set Report Page Number to 6
3. Set Report Page Name to Process plug-in - report
4. Set Form Page Number to 7
5. Set Form Page Name to Process plug-in - modal
6. Set Form Page Mode to Modal Dialog
7. Click Next button

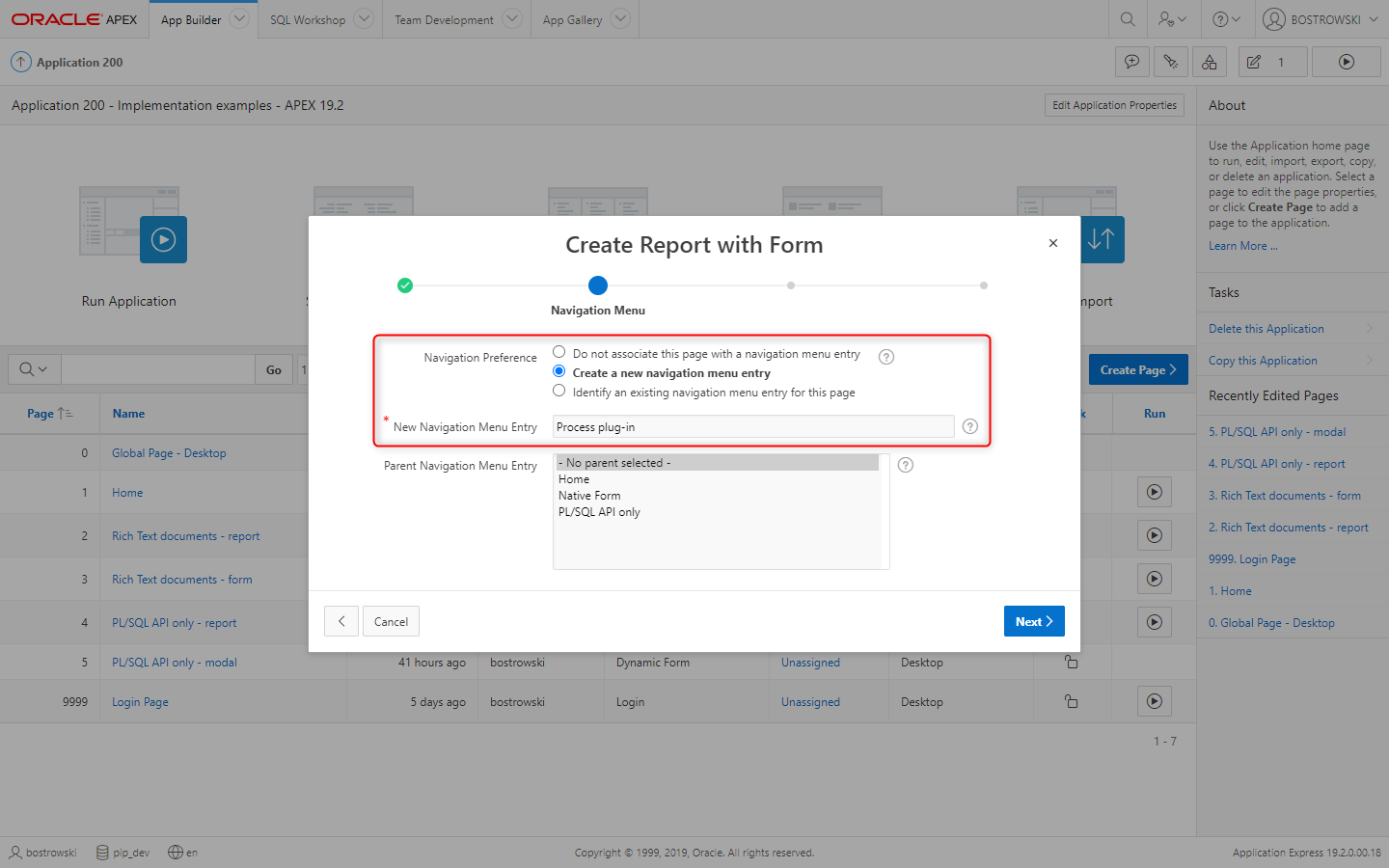

In wizard Create Report with Form (Navigation Menu):

1. Set Navigation Preference to Create a new navigation menu entry
2. Set New Navigation Menu Entry to Process plug-in
3. Click Next button

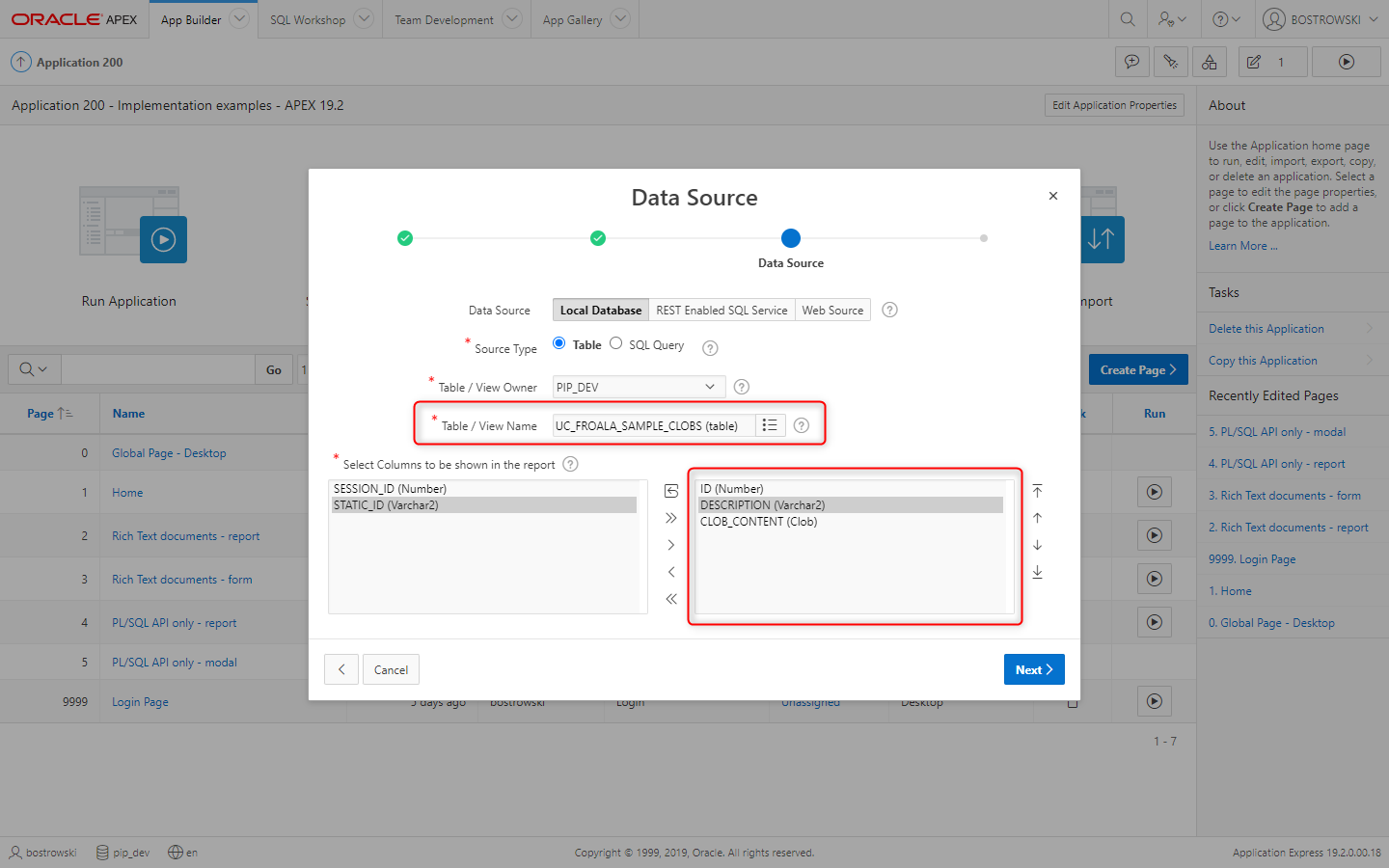

In wizard Create Report with Form (Data Source):

1. Set Data Source to Local Database
2. Set Source Type to Table
3. Set Table / View Name to UC_FROALA_SAMPLE_CLOBS
4. In Select Columns to be shown in the report select ID, DESCRIPTION and CLOB_CONTENT

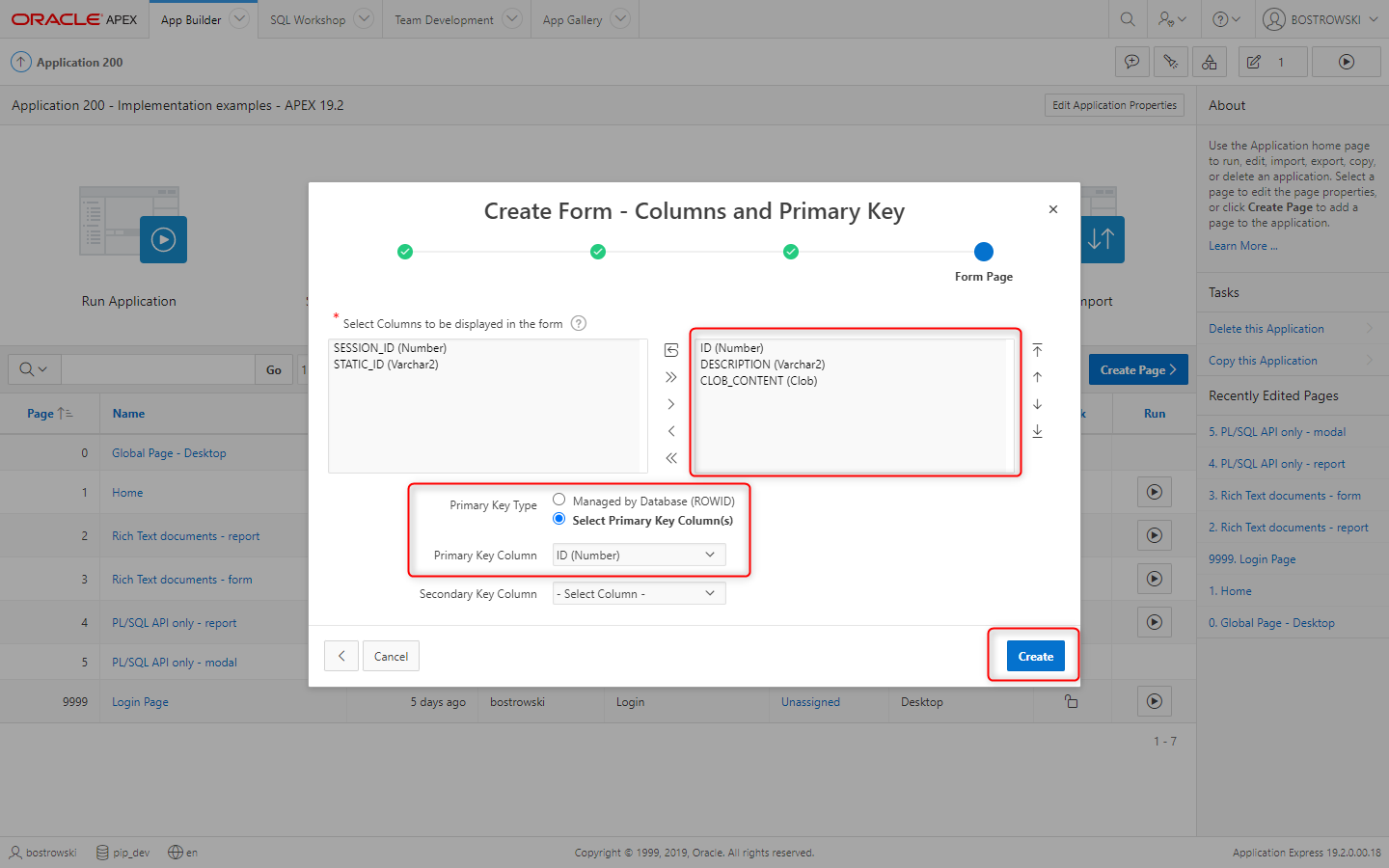

In wizard Create Report with Form (Form page):

1. In Select Columns to be shown in the form select ID, DESCRIPTION and CLOB_CONTENT
2. Set Primary Key Column to ID (Number)
3. Click Create button

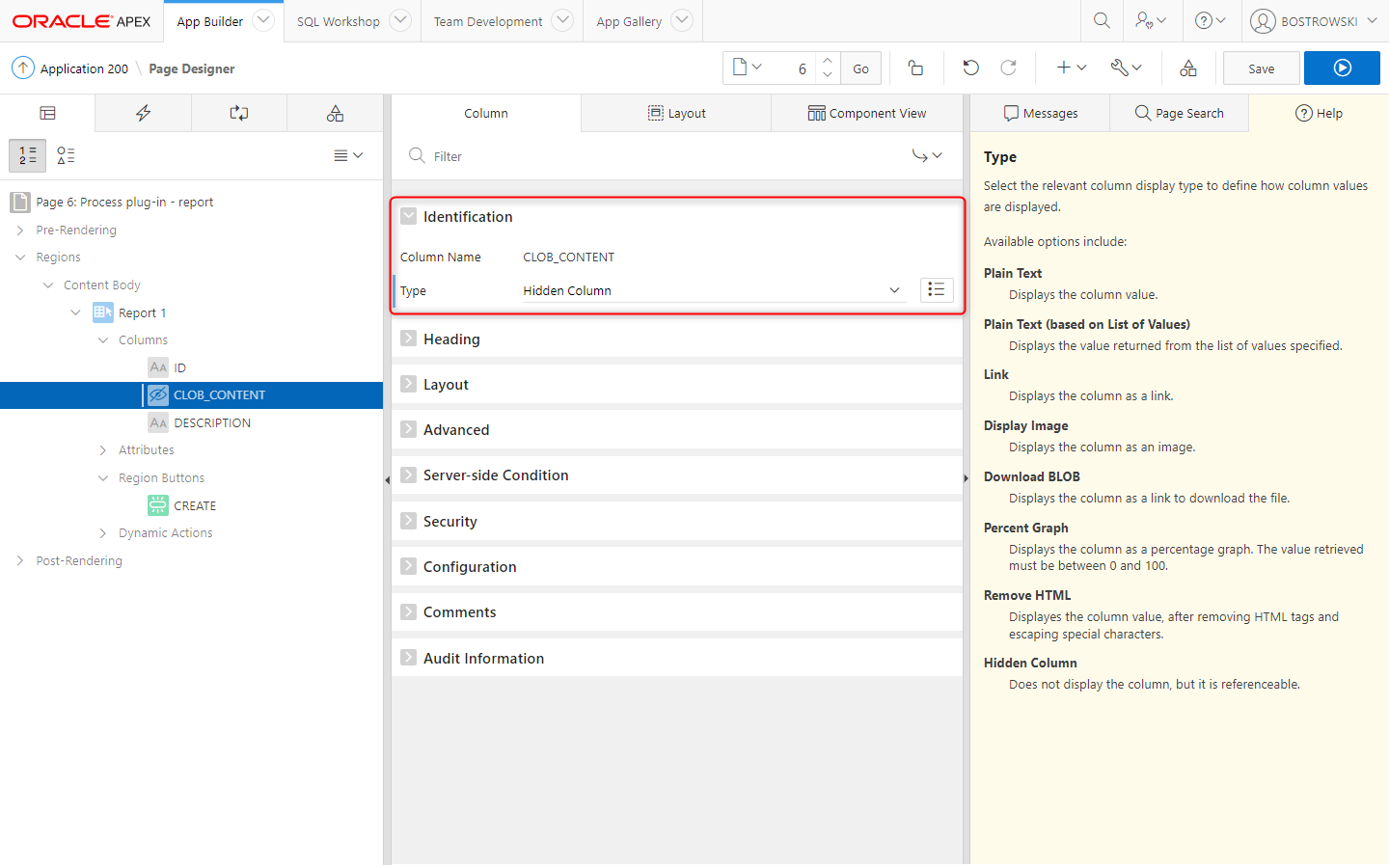

New pages are created with all required components. Navigate to page 6 Process plug-in - report and hide column CLOB_CONTENT so it won't raise interactive report error when CLOB value exceeds VARCHAR2 limitation. Follow the following steps:

1. Select Report 1
2. Expand Columns
3. Select column CLOB_CONTENT
4. Set Identification \ Type to Hidden Column

Remove form components

info

Removed processes in this step are native form component processes loading, creating, updating and deleting rows in the database table. These components were created by APEX wizard and they will be replaced with page processes implementing the supporting process plug-in.

Navigate to page 7 Process plug-in - modal, and

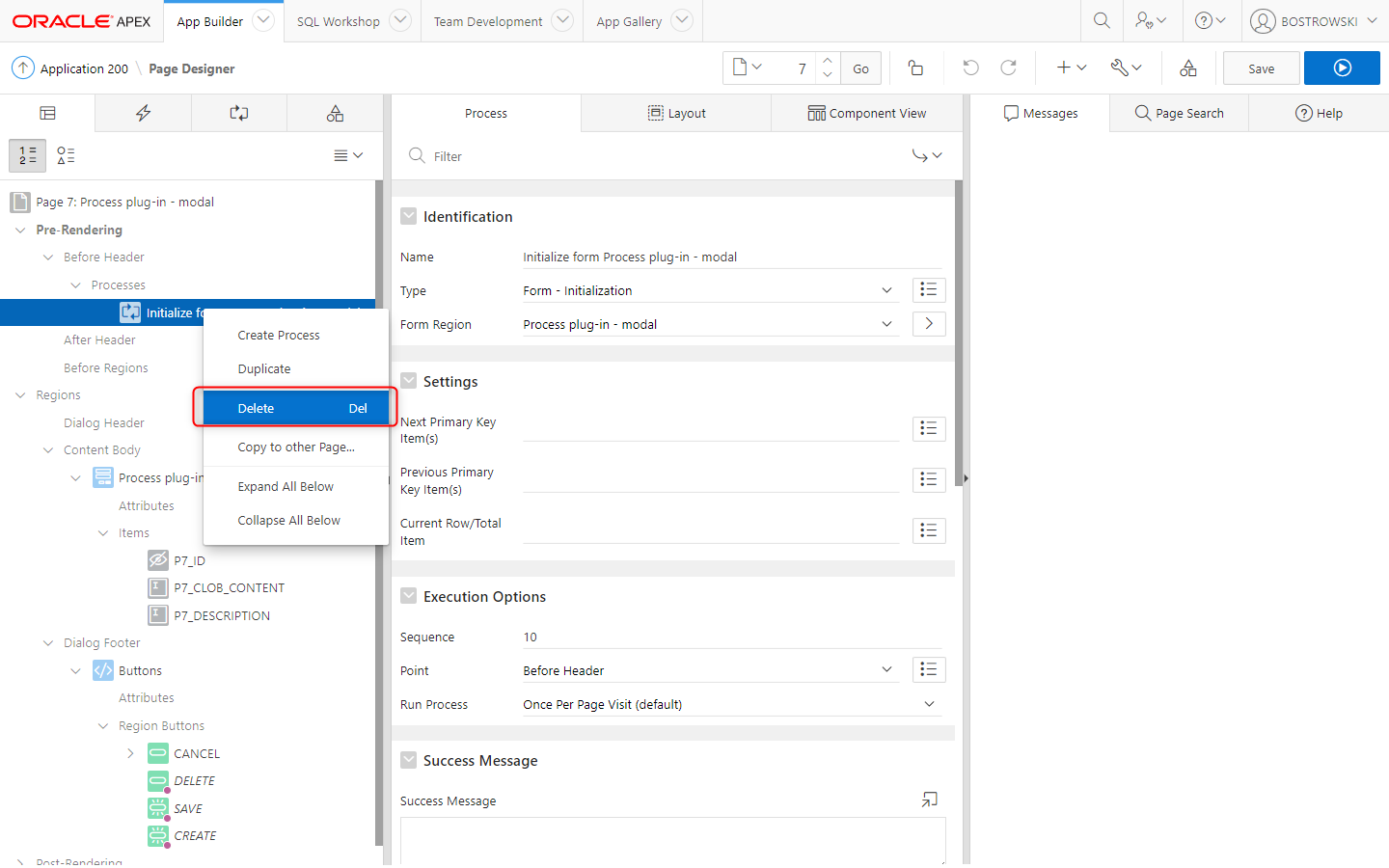

1. select before header process and using DELETE key remove these processes.

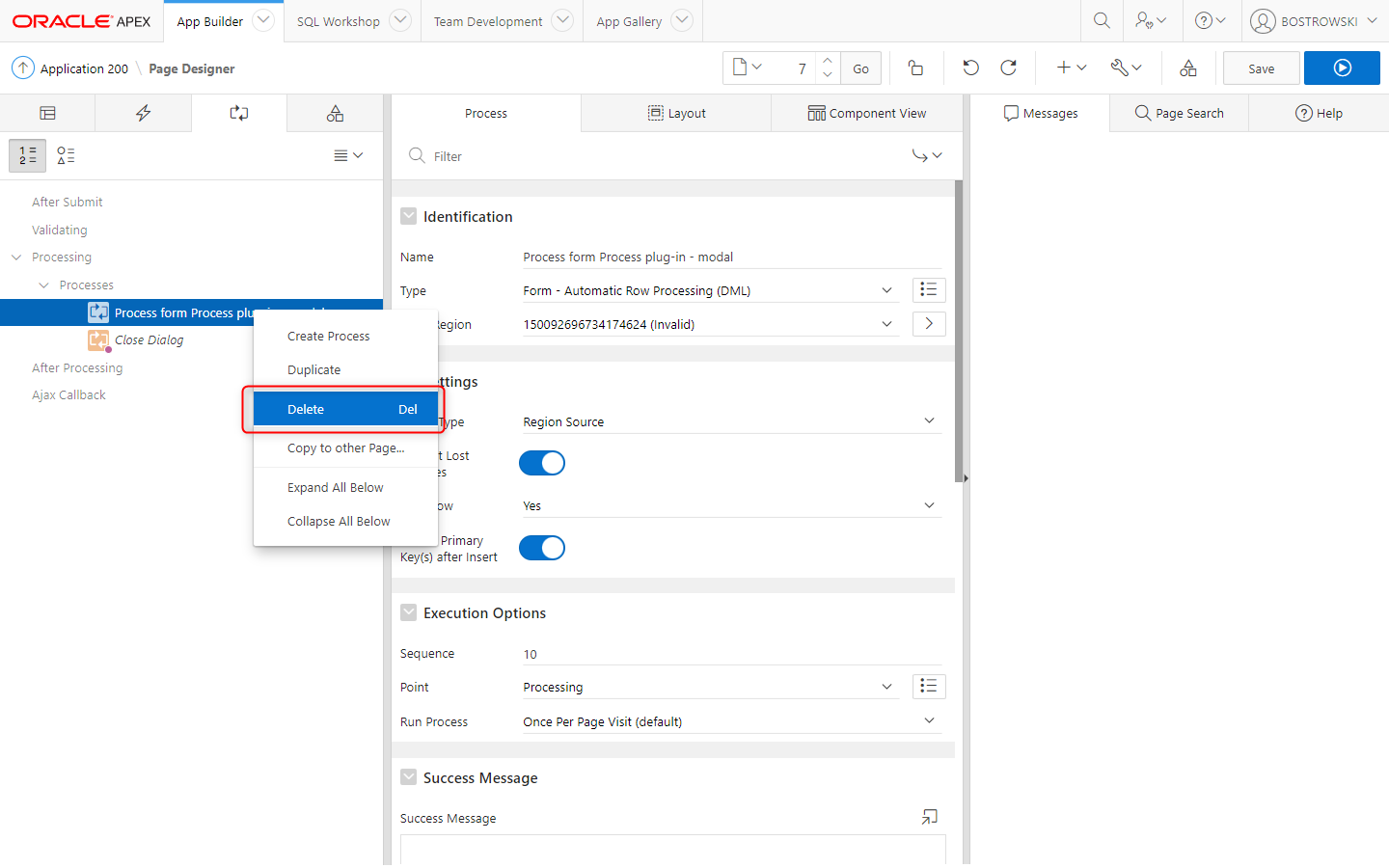

2. select processing process and using DELETE key remove these processes.

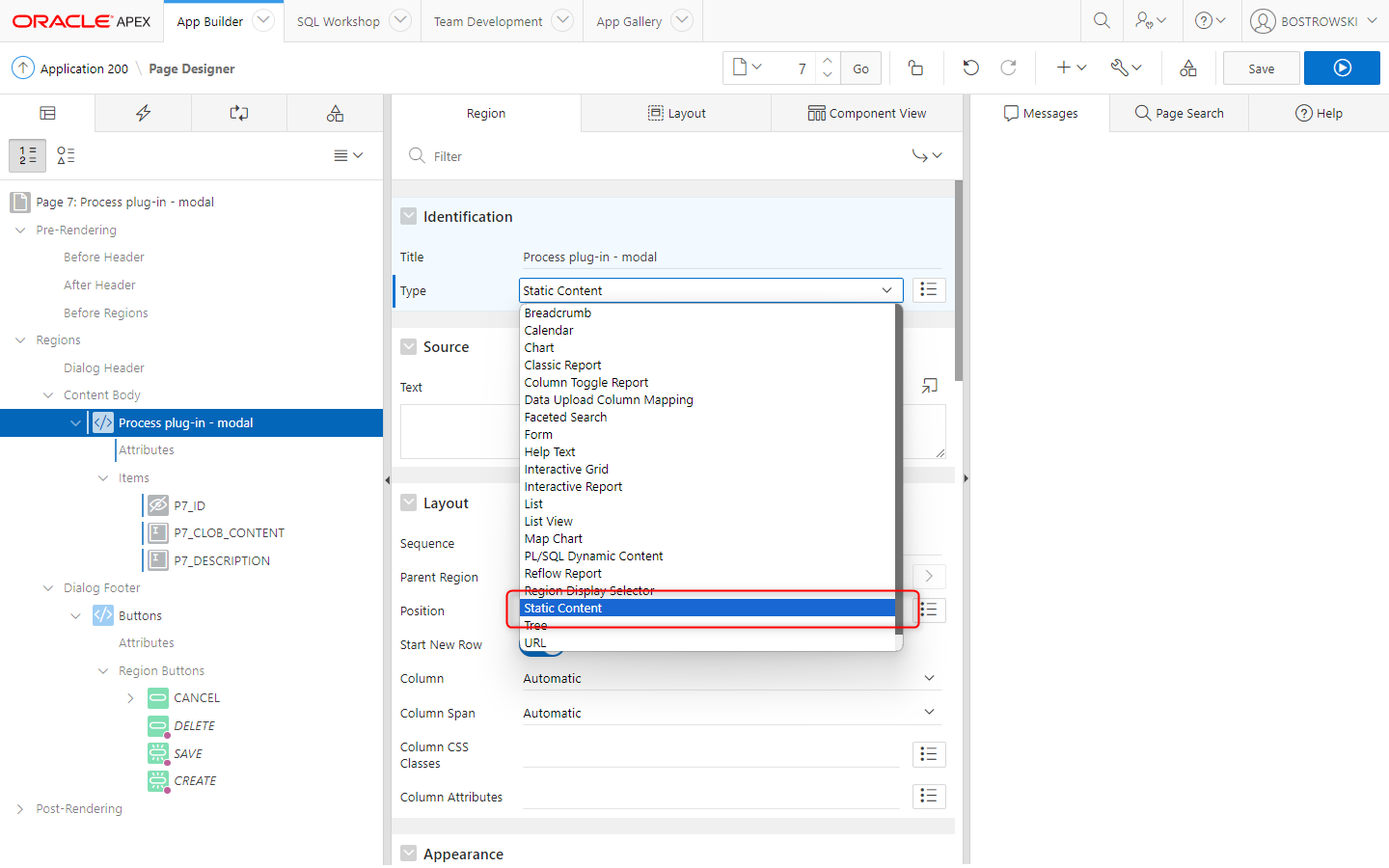

3. select region Process plug-in - modal and change Type to Static Content

Before header

Processing

Form region

Enable page item plug-in

about this step

Enabling plug-in uploading images is optional, not uploaded images remain in a document as is without modyfing document HTML.

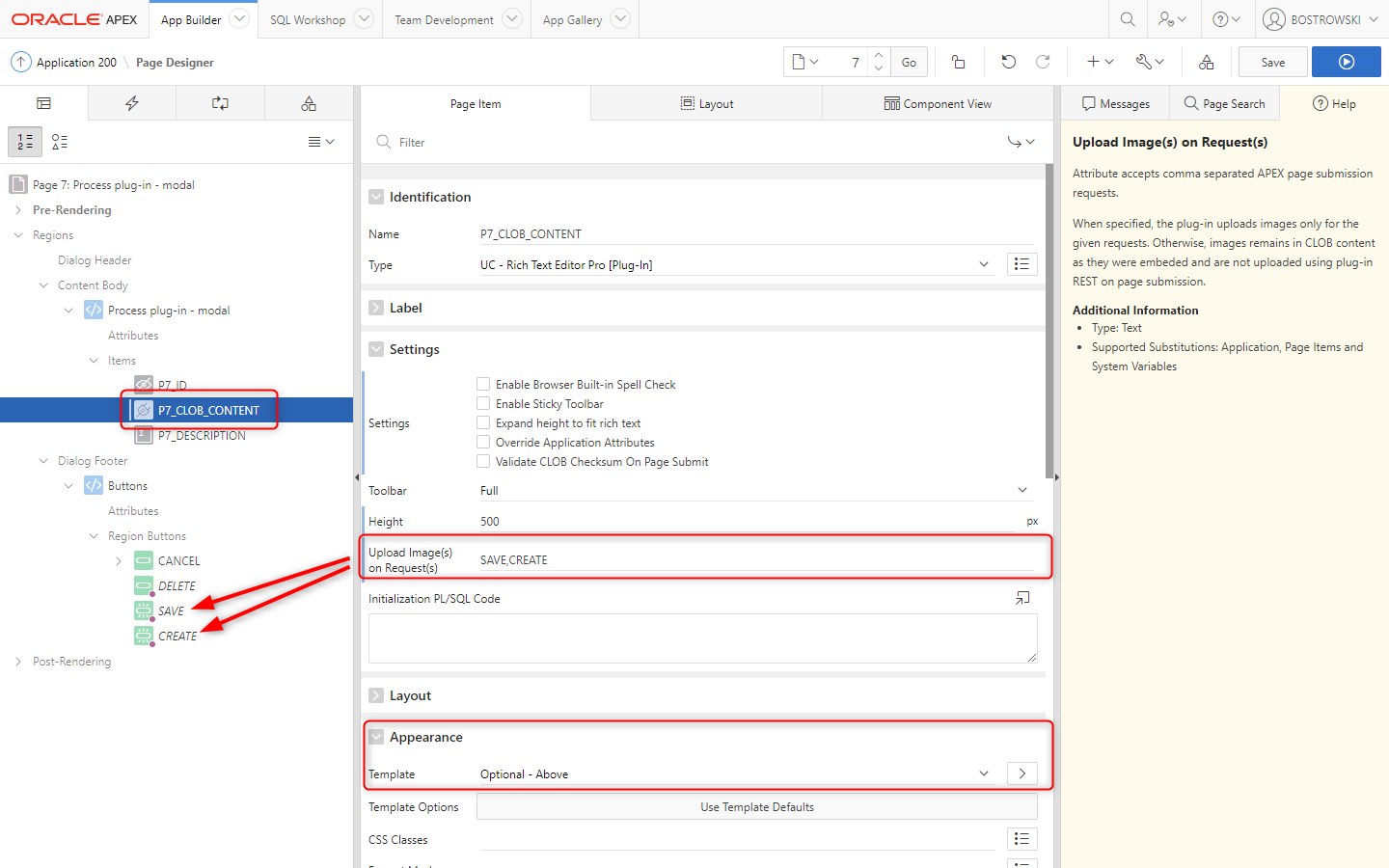

Navigate to page 7 Process plug-in - modal and update page item P7_CLOB_CONTENT by following these steps:

1. Set Identification \ Type to UC - Rich Text Editor Pro [Plug-in].
2. Set Appearance \ Template to Optional \ Above
3. Set Settings \ Upload Image(s) on Request(s) to SAVE,CREATE

Page processes

about this step

This guidelines showcase the supporting process plug-in loading, inserting and updating documents in the database using a developer's specific PL/SQL Code. The implementation guidelines for native form showcase the supporting process plug-in using table specification.

Before header - load a document

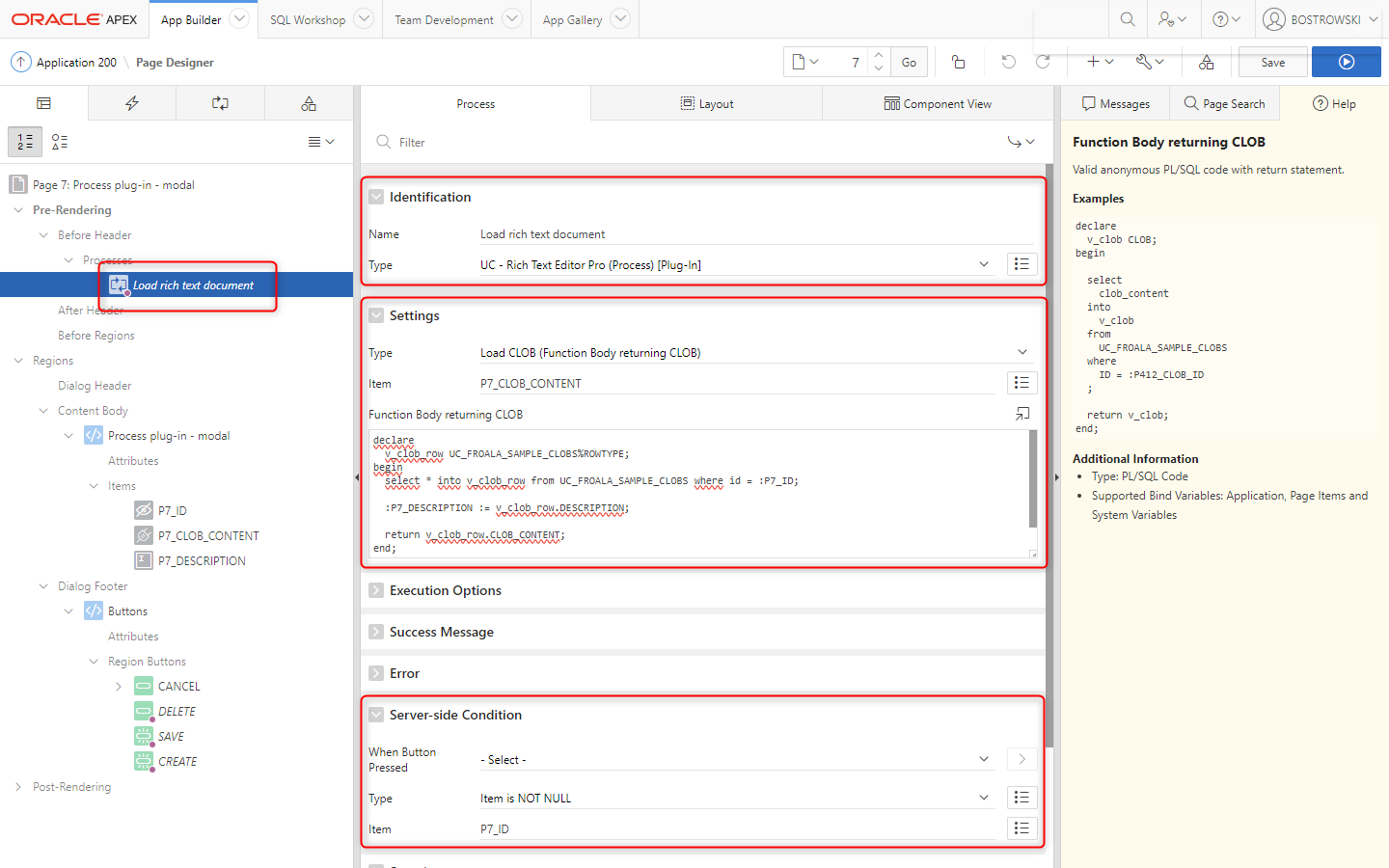

Create a new Before Header page process named Load rich text document and:

1. Set Identification \ Type to UC - Rich Text Editor Pro (Process) [Plug-in]
2. Set Settings \ Type to Load CLOB (Function Body returning CLOB)
3. Set Settings \ Item to P7_CLOB_CONTENT
4. Set Settings \ Function Body returning CLOB
5. Set Success Message to Rich text document &P7_ID. loaded.
6. Set Server-side Condition \ Type to Item is NOT NULL
7. Set Server-side Condition \ Item to P7_ID
8. Save page changes

Page designer

PL/SQL Code

declare
  v_clob_row UC_FROALA_SAMPLE_CLOBS%ROWTYPE;
begin
  select * into v_clob_row from UC_FROALA_SAMPLE_CLOBS where id = :P7_ID;

  :P7_DESCRIPTION := v_clob_row.DESCRIPTION;

  return v_clob_row.CLOB_CONTENT;
end;

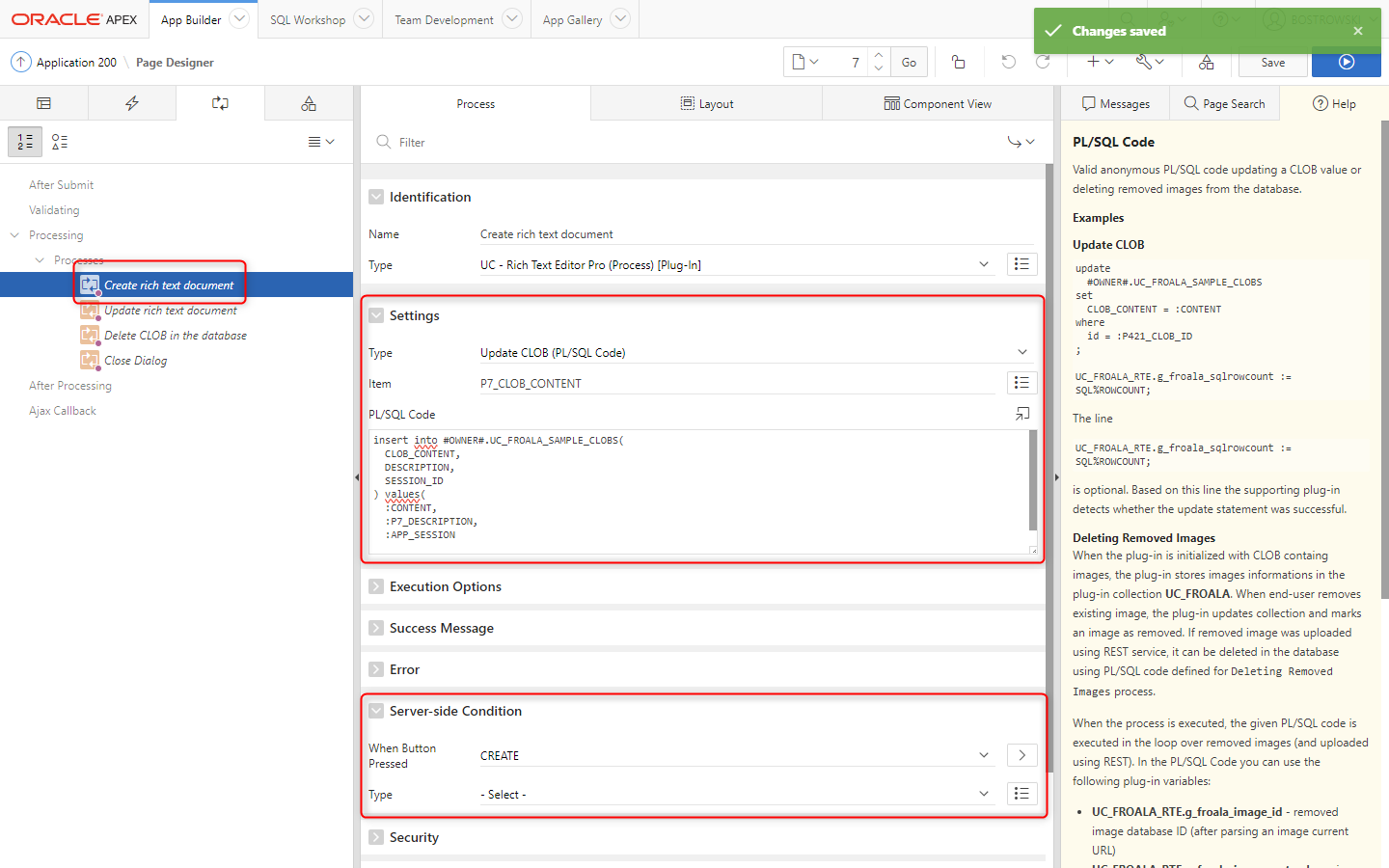

Processing - create a document

Create a new Processing process named Create rich text document and:

1. Set Identification \ Type to UC - Rich Text Editor Pro (Process) [Plug-in]
2. Set Settings \ Type to Update CLOB (PL/SQL Code)
3. Set Settings \ Item to P7_CLOB_CONTENT
4. Set Settings \ PL/SQL Code
5. Set Success Message to Rich text document &P3_ID. updated.
6. Set erver-side Condition \ Type to Request = Value
7. Set erver-side Condition \ Value to CREATE
8. Save page changes

Page designer

PL/SQL Code

insert into #OWNER#.UC_FROALA_SAMPLE_CLOBS(
  CLOB_CONTENT,
  DESCRIPTION,
  SESSION_ID
) values(
  :CONTENT,
  :P7_DESCRIPTION,
  :APP_SESSION

) returning id into :P7_ID;

Processing - update a document

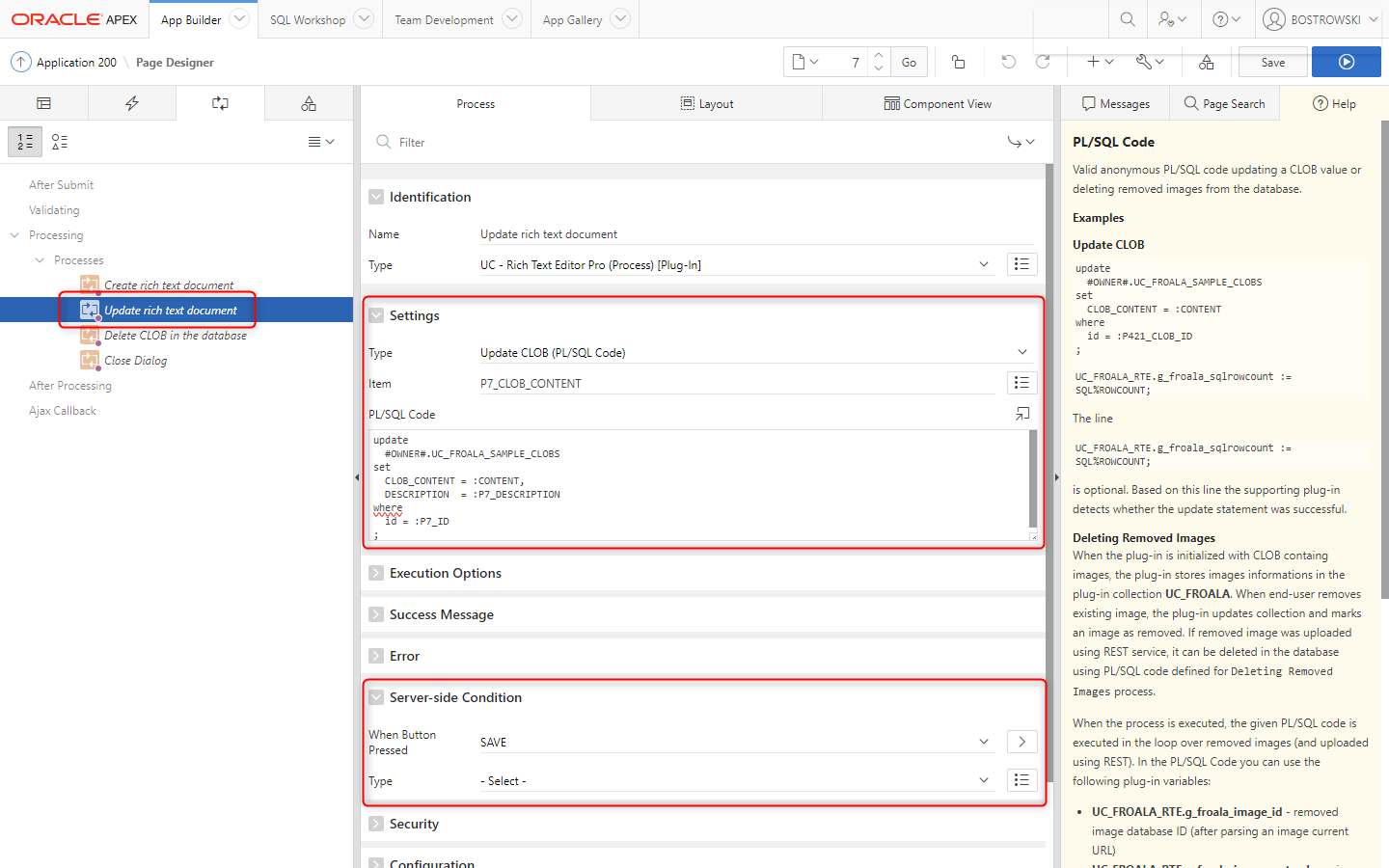

Create a new Processing process named Update rich text document and:

1. Set Identification \ Type to UC - Rich Text Editor Pro (Process) [Plug-in]
2. Set Settings \ Type to Update CLOB (PL/SQL Code)
3. Set Settings \ Item to P7_CLOB_CONTENT
4. Set Settings \ PL/SQL Code
5. Set Success Message to Rich text document &P3_ID. updated.
6. Set Server-side Condition \ Type to Request = Value
7. Set Server-side Condition \ Value to SAVE
8. Save page changes

Page designer

PL/SQL Code

update
  #OWNER#.UC_FROALA_SAMPLE_CLOBS
set
  CLOB_CONTENT = :CONTENT,
  DESCRIPTION  = :P7_DESCRIPTION
where
  id = :P7_ID
;

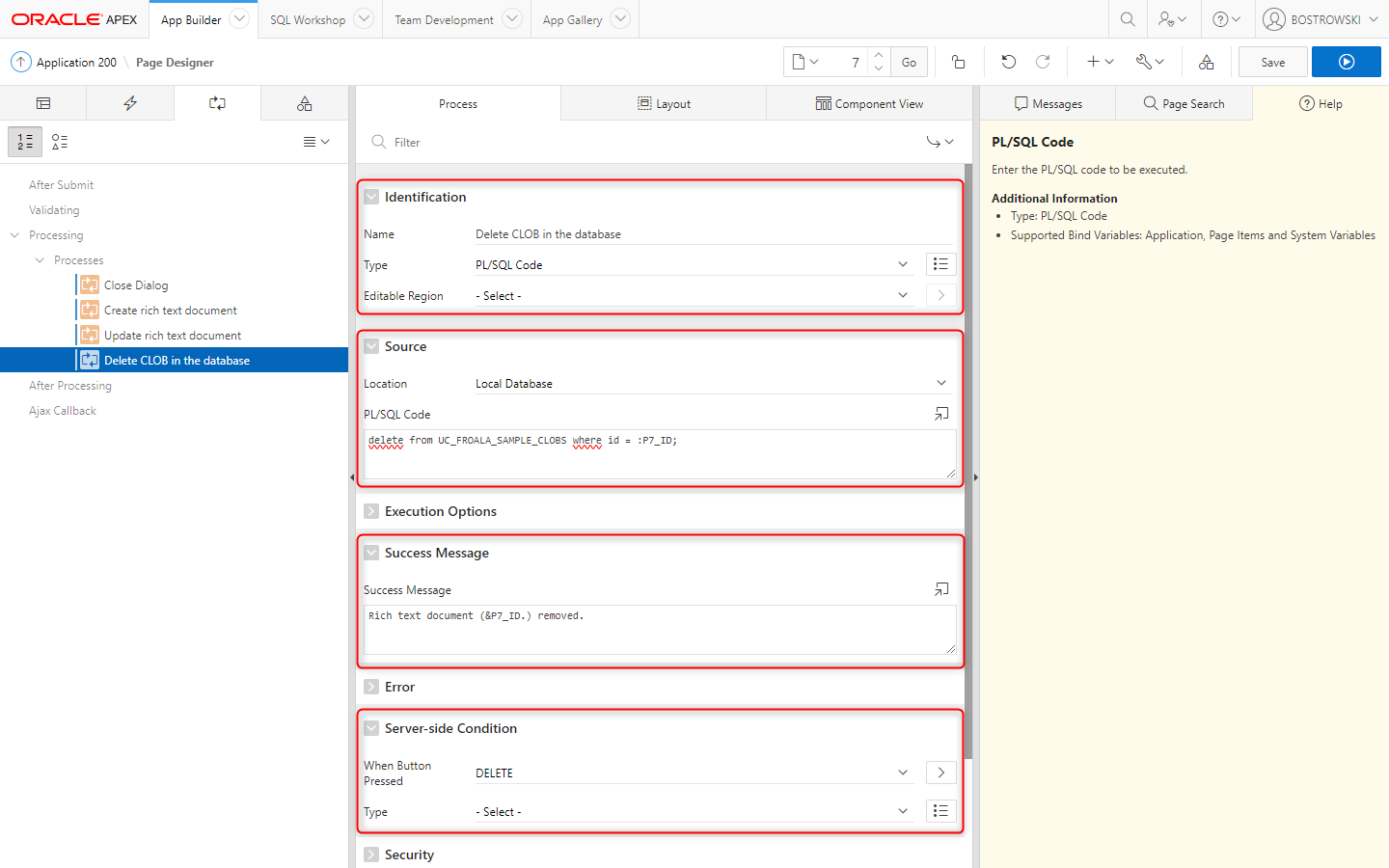

Processing - delete a document

Create a new Processing process named Delete CLOB in the database and

1. Set Identification \ Type to PL/SQL Code
2. Set Source \ PL/SQL Code
3. Set Success Message to Rich text document (&P7_ID.) removed.
4. Set Server-side Condition \ When Button Pressed to DELETE

Page designer

PL/SQL Code

delete from UC_FROALA_SAMPLE_CLOBS where id = :P7_ID;

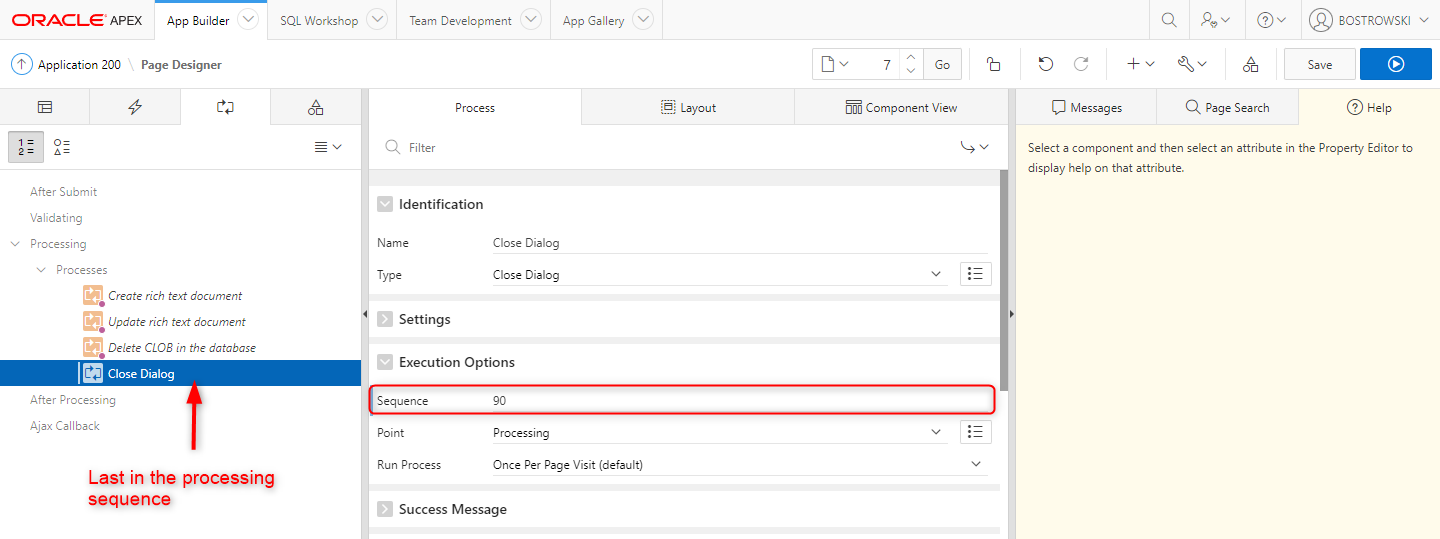

Update Close dialog execution sequence so it's the last process to be executed.

Test it

This simple and easy to implement instruction showcased how easy is utilizing the supporting process plug-in to load, create and update rich text documents.

To test the implementation using interactive report and modal page implementing the plug-in run page 6 - Process plug-in - report.

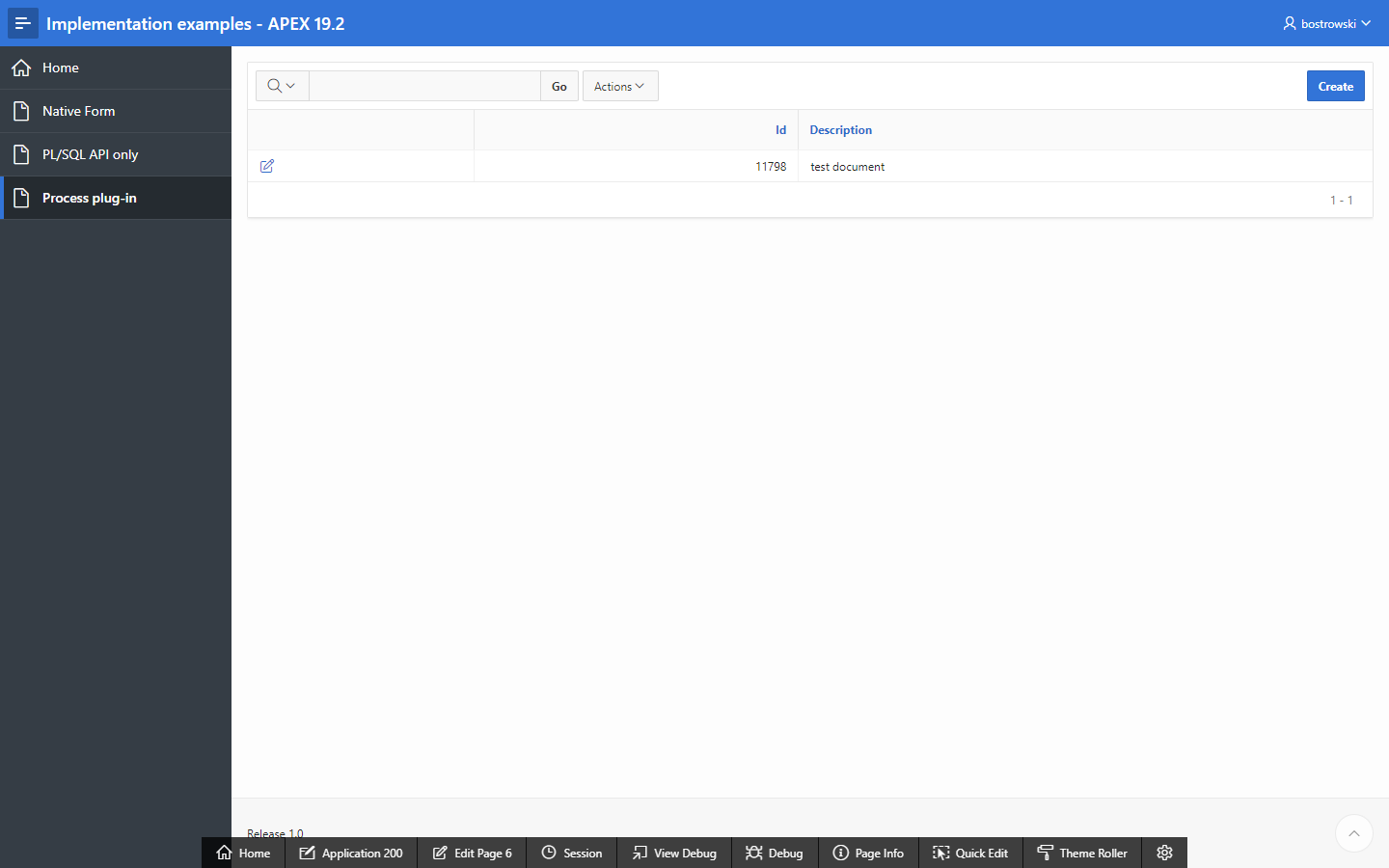

Interactive report preview

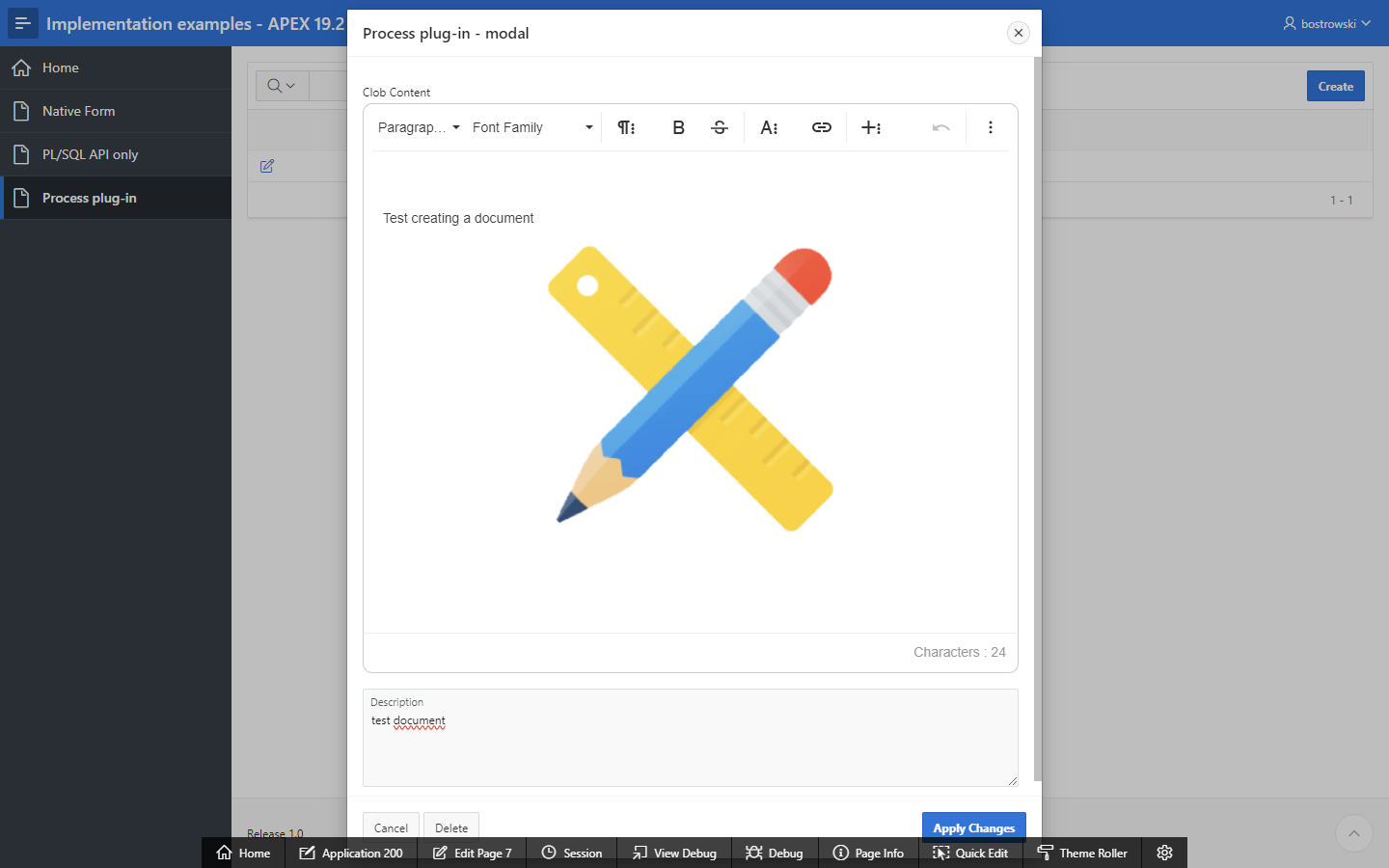

Form preview

Test the instruction in the sample application

The plug-in sample application showcase this instructions implemention in example page Handle CLOB using the plug-in PL/SQL API.
